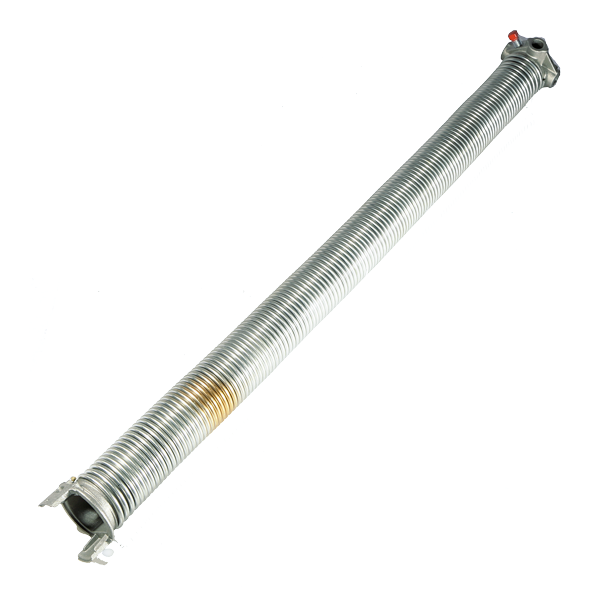

EZ-Set Torsion Springs – Safer, Faster, and Easier Installation
MUST HAVE EZ-SET Winding Units and System
Simplify your garage door repair or upgrade with the EZ-Set Torsion Spring system — engineered for convenience, reliability, and safety.
Unlike traditional torsion springs that require manual winding with bars, the EZ-Set system uses a simple winding unit that allows smooth, controlled tensioning — perfect for both DIY installers and professionals.
⚙️ Key Benefits
✅ Simplified Installation – No manual winding required! Easily tension springs using a standard drill and EZ-Set winding unit.
✅ Safer Setup – Reduces the risk of injury from high-tension winding.
✅ No Center Bearing Plate Needed – The EZ-Set design mounts at the ends, saving time and hardware.
✅ Smooth & Balanced Operation – Ensures consistent, quiet door performance.
✅ Durable Galvanized Finish – Rust-resistant coating for long-lasting reliability.
✅ Multiple Sizes Available – Compatible with a wide range of residential garage doors.
📏 How to Measure Your EZ-Set Torsion Spring
Before ordering, you’ll need three key measurements:
| Step |
What to Measure |
Description |
| 1️⃣ |
Wire Diameter |
Use a caliper or measure 20 or 40 coils and compare to the chart below. |
| 2️⃣ |
Inside Diameter (ID) |
Usually printed on the winding cone (commonly 1.75" or 2"). |
| 3️⃣ |
Spring Length |
Measure the relaxed length of the spring (do not stretch). |
🧮 Wire Size Measurement Guide
| Coils Measured |
Length (inches) |
Wire Size |
| 20 coils |
3.53" |
.177 |
| 20 coils |
3.84" |
.192 |
| 20 coils |
4.14" |
.207 |
| 20 coils |
4.38" |
.2187 |
| 20 coils |
4.50" |
.225 |
| 20 coils |
4.68" |
.234 |
Tip: The more coils you measure, the more accurate your result.
For best results, measure 40 coils and divide by 40 to find the wire diameter.
🔄 How to Identify Left-Wound vs. Right-Wound Springs
It’s crucial to order the correct wind direction:
| Type |
Wire Direction |
Location on Door |
Cone Color |
| Left-Wound |
Ends point up and to the right
|
Mounted on the Left side |
Black |
| Right-Wound |
Ends point up and to the left
|
Mounted on the Right side |
Left |
💡 Remember: This only applies to EZ-Set Springs and Systems
🧱 Specifications
| Specification |
Detail |
| Material |
Galvanized steel |
| Finish |
Corrosion-resistant |
| Mount Type |
EZ-Set system |
| Inside Diameter |
1.75” (standard) |
| Wire Sizes Available |
.177, .192, .207, .219, .225, .234 |
| Winding Options |
Left or Right |
| Compatible Brands |
Clopay, Ideal, and similar EZ-Set systems |
💡 Helpful Installation Tips
🔹 Always replace both springs if your door uses a pair — ensures balanced tension.
🔹 Never mix EZ-Set springs with standard torsion springs.
🔹 Inspect cables and bearings for wear before reinstallation.
🔹 Follow manufacturer instructions and use safety gear when tensioning.
