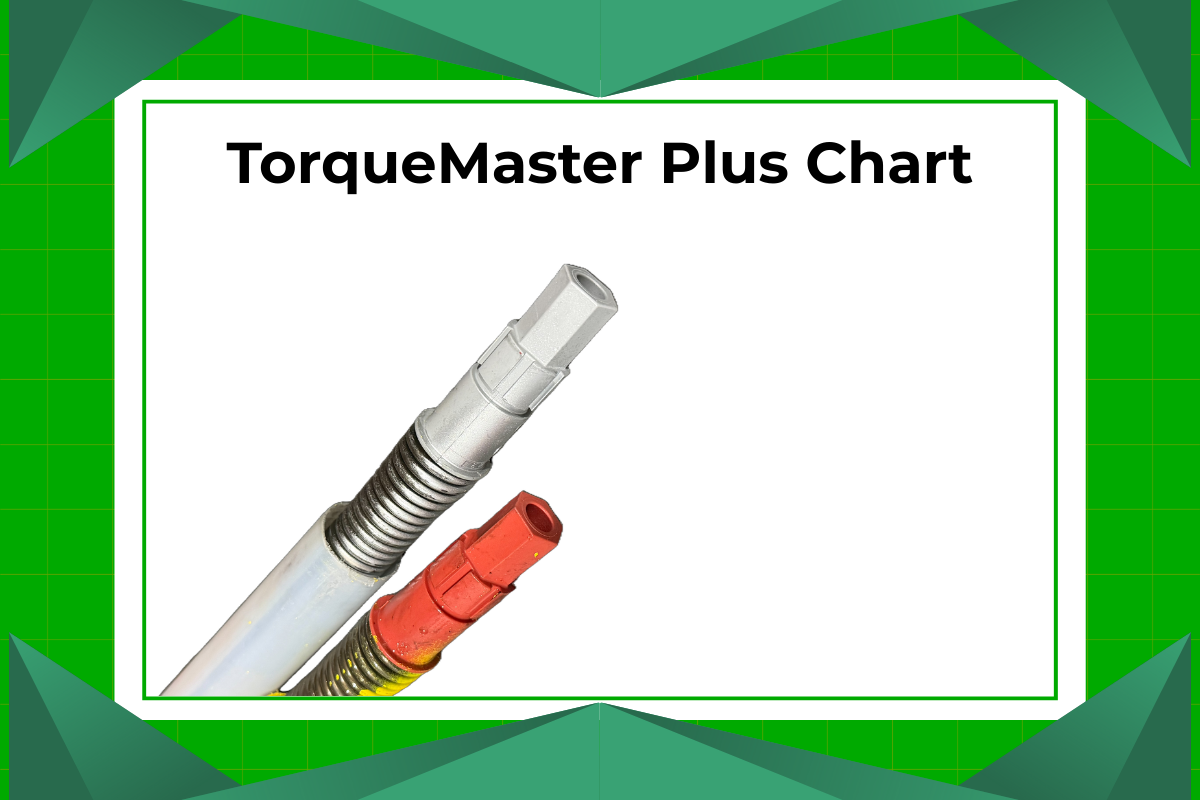

How to Find the Right Wayne Dalton Torquemaster® Plus Spring for Your Garage Door
If you have a Wayne Dalton garage door with a Torquemaster® spring system, selecting the correct replacement spring is critical for safety, balance, and proper operation. Wayne Dalton manufactures two different Torquemaster systems, and identifying which one you have is the first and most important step.
This guide explains:
-
The difference between Torquemaster® and Torquemaster® Plus
-
How to use the Torquemaster® Plus spring chart
-
How to identify your spring using door height and weight
-
When to contact us for help
Torquemaster® vs Torquemaster® Plus: What’s the Difference?
Wayne Dalton has produced two versions of the enclosed Torquemaster spring system:
Torquemaster® (Original)
-
Older design
-
Uses smaller-diameter internal springs
-
Limited spring options and lower cycle life
-
Not interchangeable with Torquemaster® Plus springs
Torquemaster® Plus
-
Newer and more robust design
-
Uses larger, heavier-duty internal springs
-
Improved balancing options and longer service life
-
Requires Torquemaster® Plus–specific springs
The spring chart on this page applies to Torquemaster® Plus systems only.
Torquemaster® and Torquemaster® Plus springs are not compatible.
What Is a Wayne Dalton Torquemaster® Plus Spring System?
Torquemaster® Plus springs are enclosed inside a steel tube mounted above the garage door. Instead of exposed torsion springs, the lifting force is generated by internal springs matched precisely to the door’s weight and height.
Because of this design, correct spring selection is critical, and Wayne Dalton part numbers must be matched exactly.
How to Use the Torquemaster® Plus Spring Chart
Step 1: Confirm Your Door Height
Torquemaster® Plus springs are sized by door height. Use the correct section of the chart:
-
7-foot high garage doors
-
8-foot high garage doors
Using the wrong height will result in improper door balance.
Step 2: Check for the Torquemaster® Information Sticker
Many Wayne Dalton Torquemaster® Plus systems include a factory-installed sticker on or near the spring tube. This sticker often provides:
-
Door height
-
Door weight
-
Spring configuration (single or dual)
-
Original spring part numbers
If your door has this sticker, it is the best and fastest way to identify the correct replacement springs.
(Example sticker photo shown below.)
Step 3: Determine Your Door Weight
If the sticker is missing or unreadable, door weight can be determined by:
-
Disconnecting the opener
-
Carefully lowering the door
-
Using a scale or estimating based on door construction
Once the weight range is known, locate it in the chart under the correct door height.
Step 4: Choose Single or Dual Torquemaster® Plus Springs
The chart lists two possible configurations:
Single Spring (Right-Hand Wound)
Typically used on lighter doors.
Dual Spring Set (Left-Hand + Right-Hand Wound)
Used on heavier doors for better balance, smoother operation, and reduced wear. Dual springs are generally recommended when available.
Understanding Left-Hand and Right-Hand Wound Springs
Torquemaster® Plus systems require specific winding directions:
-
Left-hand wound (LH) springs install on the left side of the center bracket
-
Right-hand wound (RH) springs install on the right side
Installing the incorrect winding direction will prevent proper operation.
What the Spring Specifications Mean
Each spring listed in the chart includes:
-
Wayne Dalton part number
-
Wire size
-
Inside diameter (Torquemaster® Plus springs use a .650" ID)
-
Spring length
You do not need to calculate these values. The chart already matches these specifications to the correct door weight and height.
Example Torquemaster® Plus Spring Selections
7' Door, 70–79 lbs
-
Single spring option: 314981 (Right-Hand)
-
Dual spring option: 314946 (Left-Hand) and 314953 (Right-Hand)
8' Door, 80–89 lbs
-
Dual spring option: 315036 (Left-Hand) and 315039 (Right-Hand)
Common Mistakes to Avoid
-
Confusing Torquemaster® with Torquemaster® Plus springs
-
Ordering springs based on appearance alone
-
Mixing left-hand and right-hand springs
-
Using standard torsion springs instead of Torquemaster® Plus springs
Using the wrong spring can result in poor balance, shortened spring life, and damage to the door or opener.
Can’t Find Your Spring or Need Confirmation?
Some doors do not fall perfectly into standard weight ranges, especially if they include insulation, windows, or custom hardware.
If you cannot find your spring in the chart, or want help confirming compatibility, contact us with:
-
Door height
-
Door weight (or door model if known)
-
Whether your system is Torquemaster® or Torquemaster® Plus
We are happy to help you identify the correct Wayne Dalton Torquemaster® Plus spring.
Get the Right Torquemaster® Plus Spring the First Time
Correct spring selection is essential for safe and reliable garage door operation. If you have questions or need help verifying your Wayne Dalton Torquemaster® Plus setup, contact us and we’ll make sure you get the correct parts for your door.
7' DOOR HEIGHT — SPRING OPTIONS BY DOOR WEIGHT
| Door Height | Door Weight | Single Spring (Right-Hand) | Dual Spring (Left + Right) |
|---|---|---|---|
| 7' | 40–49 lbs | 314957 (RH) .120'' WIRE SIZE X 0.650'' ID X 32.59'' LONG - RIGHT WOUND | — |
| 7' | 50–59 lbs | 314965 (RH): .129'' WIRE SIZE X 0.650'' ID X 37.86'' LONG - RIGHT WOUND | — |
| 7' | 60–69 lbs | 314973 (RH): .137'' WIRE SIZE X 0.650'' ID X 42.85'' LONG - RIGHT WOUND | — |
| 7' | 70–79 lbs | 314981 (RH): .143'' WIRE SIZE X 0.650'' ID X 45.72'' LONG - RIGHT WOUND |
314946 (LH): .106'' WIRE SIZE X 0.650'' ID X 26.59'' LONG - LEFT WOUND 314953 (RH): .115'' WIRE SIZE X 0.650'' ID X 29.82'' LONG - RIGHT WOUND |
| 7' | 80–89 lbs | 314985 (RH): .146'' WIRE SIZE X 0.650'' ID X 47.38'' LONG - RIGHT WOUND |
314962 (LH): .124'' WIRE SIZE X 0.650'' ID X 34.42'' LONG - LEFT WOUND 314945 (RH): .106'' WIRE SIZE X 0.650'' ID X 26.59'' LONG - RIGHT WOUND |
| 7' | 90–99 lbs | 314991 (RH): .154'' WIRE SIZE X 0.650'' ID X 51.59'' LONG - RIGHT WOUND |
314962 (LH): .124'' WIRE SIZE X 0.650'' ID X 34.42'' LONG - LEFT WOUND 314957 (RH): .120'' WIRE SIZE X 0.650'' ID X 32.59'' LONG - RIGHT WOUND |
| 7' | 100–109 lbs | 314995 (RH): .160'' WIRE SIZE X 0.650'' ID X 55.77'' LONG - RIGHT WOUND |
314962 (LH): .124'' WIRE SIZE X 0.650'' ID X 34.42'' LONG - LEFT WOUND 314965 (RH): .129'' WIRE SIZE X 0.650'' ID X 37.86'' LONG - RIGHT WOUND |
| 7' | 110–119 lbs | 314999 (RH): .164'' WIRE SIZE X 0.650'' ID X 57.14'' LONG - RIGHT WOUND |
314970 (LH): .133'' WIRE SIZE X 0.650'' ID X 40.23'' LONG - LEFT WOUND 314965 (RH): .129'' WIRE SIZE X 0.650'' ID X 37.86'' LONG - RIGHT WOUND |
| 7' | 120–129 lbs | — |
314970 (LH): .133'' WIRE SIZE X 0.650'' ID X 40.23'' LONG - LEFT WOUND 314973 (RH): .137'' WIRE SIZE X 0.650'' ID X 42.85'' LONG - RIGHT WOUND |
| 7' | 130–139 lbs | — |
314970 (LH): .133'' WIRE SIZE X 0.650'' ID X 40.23'' LONG - LEFT WOUND 314981 (RH): .143'' WIRE SIZE X 0.650'' ID X 45.72'' LONG - RIGHT WOUND |
| 7' | 140–149 lbs | — |
314986 (LH): .146'' WIRE SIZE X 0.650'' ID X 47.38'' LONG - LEFT WOUND 314973 (RH): .137'' WIRE SIZE X 0.650'' ID X 42.85'' LONG - RIGHT WOUND |
| 7' | 150–159 lbs | — |
314986 (LH): .146'' WIRE SIZE X 0.650'' ID X 47.38'' LONG - LEFT WOUND 314981 (RH): .143'' WIRE SIZE X 0.650'' ID X 45.72'' LONG - RIGHT WOUND |
| 7' | 160–169 lbs | — |
314986 (LH): .146'' WIRE SIZE X 0.650'' ID X 47.38'' LONG - LEFT WOUND 314985 (RH): .146'' WIRE SIZE X 0.650'' ID X 47.38'' LONG - RIGHT WOUND |
| 7' | 170–179 lbs | — |
314986 (LH): .146'' WIRE SIZE X 0.650'' ID X 47.38'' LONG - LEFT WOUND 314993 (RH): .157'' WIRE SIZE X 0.650'' ID X 53.62'' LONG - RIGHT WOUND |
| 7' | 180–189 lbs | — |
314986 (LH): .146'' WIRE SIZE X 0.650'' ID X 47.38'' LONG - LEFT WOUND 314995 (RH): .160'' WIRE SIZE X 0.650'' ID X 55.77'' LONG - RIGHT WOUND |
| 7' | 190–199 lbs | — |
315000 (LH): .164'' WIRE SIZE X 0.650'' ID X 57.14'' LONG - LEFT WOUND 314985 (RH): .146'' WIRE SIZE X 0.650'' ID X 47.38'' LONG - RIGHT WOUND |
| 7' | 200–209 lbs | — |
315000 (LH): .164'' WIRE SIZE X 0.650'' ID X 57.14'' LONG - LEFT WOUND 314991 (RH): .154'' WIRE SIZE X 0.650'' ID X 51.59'' LONG - RIGHT WOUND |
| 7' | 210–219 lbs | — |
315000 (LH): .164'' WIRE SIZE X 0.650'' ID X 57.14'' LONG - LEFT WOUND 314995 (RH): .160'' WIRE SIZE X 0.650'' ID X 55.77'' LONG - RIGHT WOUND |
| 7' | 220–229 lbs | — |
315000 (LH): .164'' WIRE SIZE X 0.650'' ID X 57.14'' LONG - LEFT WOUND 314999 (RH): .164'' WIRE SIZE X 0.650'' ID X 57.14'' LONG - RIGHT WOUND |
| 7' | 230–239 lbs | — |
315000 (LH): .164'' WIRE SIZE X 0.650'' ID X 57.14'' LONG - LEFT WOUND 315003 (RH): .172'' WIRE SIZE X 0.650'' ID X 65.66'' LONG - RIGHT WOUND
|
| 7' | 240–249 lbs | — |
315000 (LH): .164'' WIRE SIZE X 0.650'' ID X 57.14'' LONG - LEFT WOUND 315007 (RH): .176'' WIRE SIZE X 0.650'' ID X 67.69'' LONG - RIGHT WOUND |
| 7' | 250–259 lbs | — |
315000 (LH): .164'' WIRE SIZE X 0.650'' ID X 57.14'' LONG - LEFT WOUND 315011 (RH): .180'' WIRE SIZE X 0.650'' ID X 70.00'' LONG - RIGHT WOUND |
| 7' | 260–269 lbs | — |
315014 (LH): .180'' WIRE SIZE X 0.650'' ID X 67.68'' LONG - LEFT WOUND 315001 (RH): .168'' WIRE SIZE X 0.650'' ID X 61.28'' LONG - RIGHT WOUND |
8' DOOR HEIGHT — SPRING OPTIONS BY DOOR WEIGHT
| Door Height | Door Weight | Single Spring (Right-Hand) | Dual Spring (Left + Right) |
|---|---|---|---|
| 8' | 40–49 lbs | 315039 (RH): .120'' WIRE SIZE X 0.650'' ID X 36.24'' LONG - RIGHT WOUND | — |
| 8' | 50–59 lbs | 315047 (RH): .129'' WIRE SIZE X 0.650'' ID X 42.11'' LONG - RIGHT WOUND | — |
| 8' | 60–69 lbs | 315055 (RH): .137'' WIRE SIZE X 0.650'' ID X 47.67'' LONG - RIGHT WOUND | — |
| 8' | 70–79 lbs | 315063 (RH): .143'' WIRE SIZE X 0.650'' ID X 50.87'' LONG - RIGHT WOUND | — |
| 8' | 80–89 lbs | 315067 (RH): .146'' WIRE SIZE X 0.650'' ID X 52.72'' LONG - RIGHT WOUND |
315036 (LH): .115'' WIRE SIZE X 0.650'' ID X 33.15'' LONG - LEFT WOUND 315039 (RH): .120'' WIRE SIZE X 0.650'' ID X 36.24'' LONG - RIGHT WOUND |
| 8' | 90–99 lbs | 315073 (RH): .154'' WIRE SIZE X 0.650'' ID X 57.48'' LONG - RIGHT WOUND |
315036 (LH): .115'' WIRE SIZE X 0.650'' ID X 33.15'' LONG - LEFT WOUND 315047 (RH): .129'' WIRE SIZE X 0.650'' ID X 42.11'' LONG - RIGHT WOUND |
| 8' | 100–109 lbs | 315077 (RH): .160'' WIRE SIZE X 0.650'' ID X 62.15'' LONG - RIGHT WOUND |
315036 (LH): .115'' WIRE SIZE X 0.650'' ID X 33.15'' LONG - LEFT WOUND 315055 (RH): .137'' WIRE SIZE X 0.650'' ID X 47.67'' LONG - RIGHT WOUND |
| 8' | 110–119 lbs | — |
315036 (LH): .115'' WIRE SIZE X 0.650'' ID X 33.15'' LONG - LEFT WOUND 315063 (RH): .143'' WIRE SIZE X 0.650'' ID X 50.87'' LONG - RIGHT WOUND |
| 8' | 120–129 lbs | — |
315052 (LH): .133'' WIRE SIZE X 0.650'' ID X 44.76'' LONG - LEFT WOUND 315055 (RH): .137'' WIRE SIZE X 0.650'' ID X 47.67'' LONG - RIGHT WOUND |
| 8' | 130–139 lbs | — |
315052 (LH): .133'' WIRE SIZE X 0.650'' ID X 44.76'' LONG - LEFT WOUND 315063 (RH): .143'' WIRE SIZE X 0.650'' ID X 50.87'' LONG - RIGHT WOUND |
| 8' | 140–149 lbs | — |
315068 (LH): .146'' WIRE SIZE X 0.650'' ID X 52.72'' LONG - LEFT WOUND 315055 (RH): .137'' WIRE SIZE X 0.650'' ID X 47.67'' LONG - RIGHT WOUND |
| 8' | 150–159 lbs | — |
315068 (LH): .146'' WIRE SIZE X 0.650'' ID X 52.72'' LONG - LEFT WOUND 315063 (RH): .143'' WIRE SIZE X 0.650'' ID X 50.87'' LONG - RIGHT WOUND |
| 8' | 160–169 lbs | — |
315068 (LH): .146'' WIRE SIZE X 0.650'' ID X 52.72'' LONG - LEFT WOUND 315067 (RH): .146'' WIRE SIZE X 0.650'' ID X 52.72'' LONG - RIGHT WOUND |
| 8' | 170–179 lbs | — |
315068 (LH): .146'' WIRE SIZE X 0.650'' ID X 52.72'' LONG - LEFT WOUND 315073 (RH): .154'' WIRE SIZE X 0.650'' ID X 57.48'' LONG - RIGHT WOUND |
| 8' | 180–189 lbs | — |
315068 (LH): .146'' WIRE SIZE X 0.650'' ID X 52.72'' LONG - LEFT WOUND 315077 (RH): .160'' WIRE SIZE X 0.650'' ID X 62.15'' LONG - RIGHT WOUND |
| 8' | 190–199 lbs | — |
315082 (LH): .164'' WIRE SIZE X 0.650'' ID X 63.67'' LONG - LEFT WOUND 315067 (RH): .146'' WIRE SIZE X 0.650'' ID X 52.72'' LONG - RIGHT WOUND |
| 8' | 200–209 lbs | — |
315082 (LH): .164'' WIRE SIZE X 0.650'' ID X 63.67'' LONG - LEFT WOUND 315073 (RH): .154'' WIRE SIZE X 0.650'' ID X 57.48'' LONG - RIGHT WOUND |
| 8' | 210–219 lbs | — |
315082 (LH): .164'' WIRE SIZE X 0.650'' ID X 63.67'' LONG - LEFT WOUND 315077 (RH): .160'' WIRE SIZE X 0.650'' ID X 62.15'' LONG - RIGHT WOUND |
| 8' | 220–229 lbs | — |
315082 (LH): .164'' WIRE SIZE X 0.650'' ID X 63.67'' LONG - LEFT WOUND 315081 (RH): .164'' WIRE SIZE X 0.650'' ID X 63.67'' LONG - RIGHT WOUND |
| 8' | 230–239 lbs | — |
315082 (LH): .164'' WIRE SIZE X 0.650'' ID X 63.67'' LONG - LEFT WOUND 315085 (RH): .172'' WIRE SIZE X 0.650'' ID X 73.19'' LONG - RIGHT WOUND |
| 8' | 240–249 lbs | — |
315082 (LH): .164'' WIRE SIZE X 0.650'' ID X 63.67'' LONG - LEFT WOUND 315089 (RH): .176'' WIRE SIZE X 0.650'' ID X 75.45'' LONG - RIGHT WOUND |
| 8' | 250–259 lbs | — |
315082 (LH): .164'' WIRE SIZE X 0.650'' ID X 63.67'' LONG - LEFT WOUND 315093 (RH): .180'' WIRE SIZE X 0.650'' ID X 78.03'' LONG - RIGHT WOUND |
| 8' | 260–269 lbs | — |
315084 (LH): .168'' WIRE SIZE X 0.650'' ID X 68.29'' LONG - LEFT WOUND 315093 (RH): .180'' WIRE SIZE X 0.650'' ID X 78.03'' LONG - RIGHT WOUND |
