Mini Warehouse Torsion Springs Selection for Self-Storage and Mini Warehouse Doors

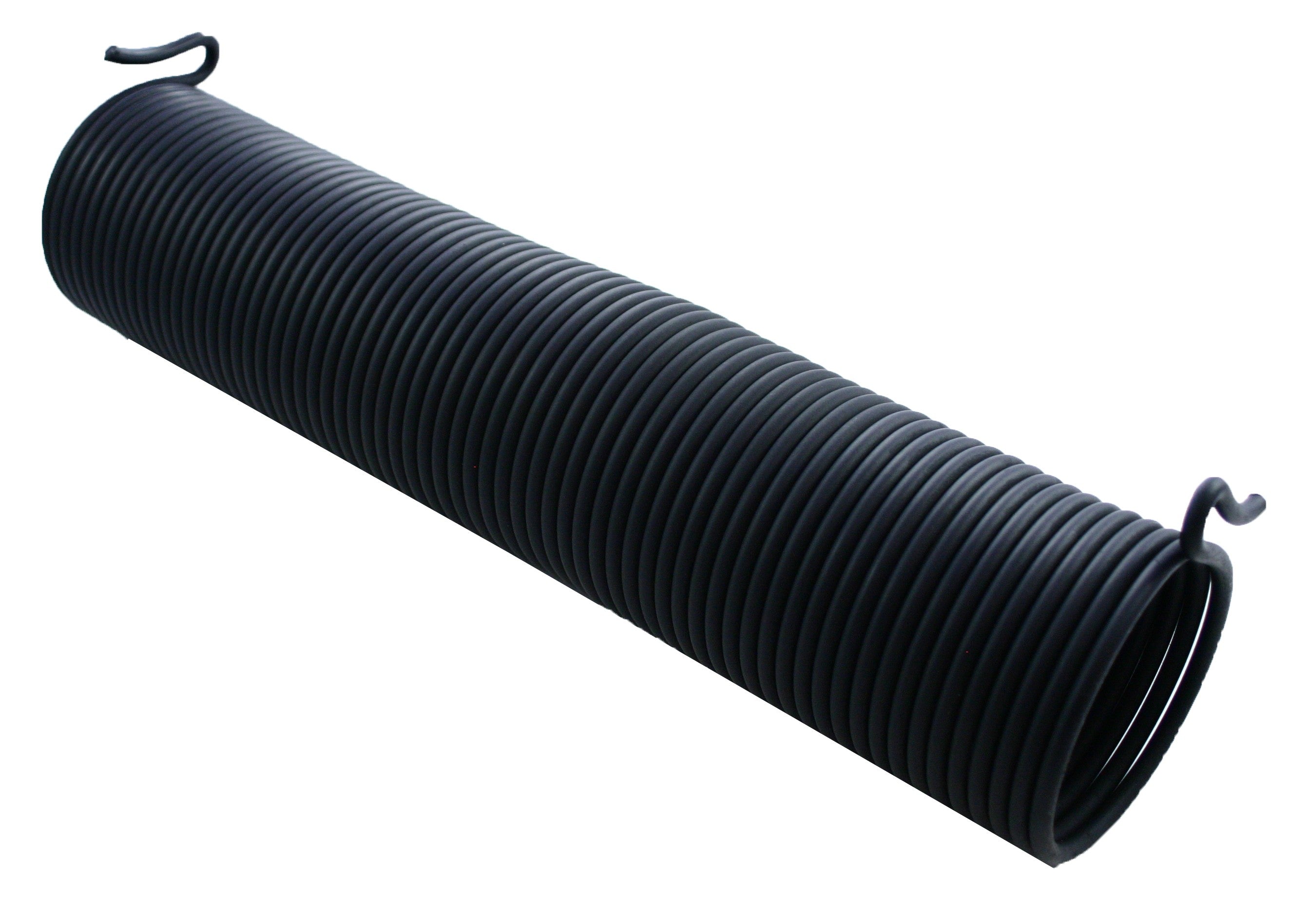

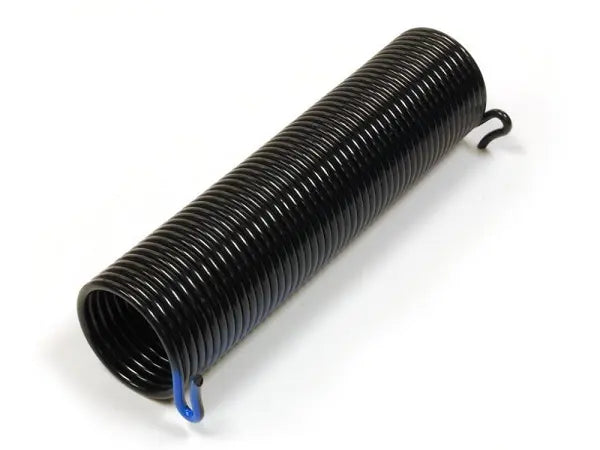

Replacement Torsion Springs for Self-Storage and Mini Warehouse Doors – Made to Order, Proudly Made in the USA

Ensure smooth, safe, and reliable operation of your self-storage or mini warehouse door with these high-quality torsion springs, crafted per order in the USA. Each spring is custom-made to your specifications, ensuring a perfect fit and long-lasting performance.

⚠️ Important: All springs are made to order and cannot be returned or exchanged.

How to Select the Correct Replacement Spring:

1. Choose Side Wind:

   • Select left or right wind.

   • Note: Side of wind does not guarantee placement on the door.

2. Determine Wire Size:

   • Measure the length of 10 coils with a tape measure.

   • Locate your wire size in the table below.

   • For accuracy, measure 20 coils as well. Both measurements should match.

   • Ensure there are no gaps between wires to avoid incorrect sizing.

     10-Coil Measurement (in/cm)	20-Coil Measurement (in/cm)	Wire Size (in)
     1-3/4 / 4.5	3-1/2 / 8.99	0.177
     1-7/8 / 4.76	3-3/4 / 9.53	0.187
     1-15/16 / 4.88	3-7/8 / 9.75	0.192
     2 / 5.08	4 / 10.16	0.200
     2-1/16 / 5.26	4-1/8 / 10.52	0.207
     2-3/16 / 5.55	4-3/8 / 11.11	0.218
     2-1/4 / 5.72	4-1/2 / 11.45	0.225
     2-5/16 / 5.95	4-5/8 / 11.9	0.234
     2-7/16 / 6.19	4-7/8 / 12.38	0.243
     2-1/2 / 6.35	5 / 12.7	0.250
     2-5/8 / 6.67	5-1/4 / 13.34	0.262
     2-3/4 / 6.93	5-1/2 / 13.87	0.273
     2-13/16 / 7.19	5-5/8 / 14.38	0.283



3. Measure Inside Diameter (ID):

   • Measure to the nearest 1/16th of an inch.

4. Measure Spring Length:

   • Ensure the spring is unwound for accurate measurement.

   • Intact Spring: Measure from end to end.

   • Broken Spring: Measure each coil and sum together for total length.

💡 Why Choose Our Torsion Springs?

• Made to Order: Customized per your specifications for a perfect fit.

• Proudly Made in the USA: High-quality materials and craftsmanship.

• Durable and Reliable: Designed for frequent use in storage and warehouse doors.

• Precise Replacement: Accurate measurements ensure smooth door operation and safety.

📦 Perfect for: Mini warehouse, self-storage, and other sectional doors requiring high-quality torsion spring replacements.
