Clopay 8' Low-Headroom Rear-Mount Kit
Specialized low-headroom hardware kit designed for compatible 8-foot-high sectional garage doors with the torsion springs mounted at the rear of the horizontal tracks.

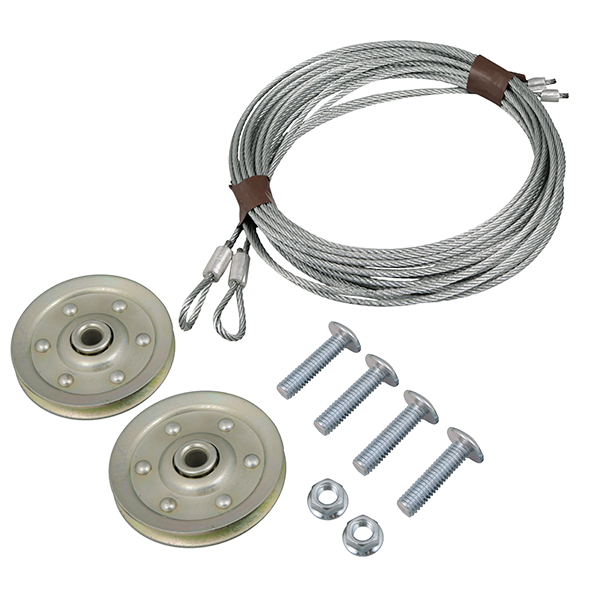

The Clopay 4119032 Low-Headroom Rear-Mount Kit is designed for garage door installations where there is not enough clearance above the opening for a conventional front-mounted torsion assembly.
In this configuration, the torsion shaft and springs are moved to the rear of the horizontal tracks. This leaves more usable space directly above the door opening while maintaining the counterbalance system needed for proper door operation.
Rear-Mounted Springs Positions the torsion spring assembly behind the horizontal tracks instead of above the door opening.
Low-Headroom Design Intended for installations with severely limited clearance between the door opening and ceiling.
Made for 8' Doors Designed for compatible sectional garage doors measuring 8 feet high.
Key Features
- Genuine Clopay low-headroom hardware kit
- Designed for compatible 8-foot-high sectional garage doors
- Rear-mounted torsion spring configuration
- Moves the torsion shaft and springs away from the header
- Provides additional clearance directly above the door opening
- Designed for double-track low-headroom installations
- Helps guide the top section through a compact track transition
- Suitable for applications where standard or front-mounted hardware will not fit
- Requires a properly engineered torsion spring, cable, drum, and track arrangement
Product Specifications
-
Manufacturer: Clopay
-
Clopay Item Number: 4119032
-
Product Description: KIT 8' LHR REAR MOUNT
-
Product Type: Low-headroom rear-mount hardware kit
-
Door Height: 8'
-
Track Configuration: Double-track low headroom
-
Spring Location: Rear of the horizontal tracks
-
Spring System: Rear-mounted torsion
-
Approximate Minimum Headroom: 4-1/2", depending on the complete installation
-
Approximate Minimum Sideroom: 7-1/2"
-
Approximate Backroom: Door height plus 30"
-
Quantity: One rear-mount low-headroom kit
Rear-Mount Configuration: This is not a standard low-headroom conversion kit. The torsion shaft, springs, cable drums, and related support hardware are installed at the rear of the horizontal track assembly. The complete track and counterbalance system must be configured specifically for rear-mount operation.
Space Requirements
-
Headroom: Approximately 4-1/2" minimum
-
Sideroom: Approximately 7-1/2" minimum
-
Backroom: Door height plus approximately 30"
These are general published requirements for Clopay rear-mount low-headroom systems. Actual clearance can vary according to door thickness, track gauge, track radius, spring size, operator type, door weight, and supporting hardware.
Garage Door Opener Notice: Rear-mount low-headroom systems have operator and door-weight limitations. Clopay documentation generally specifies a compatible trolley-style opener for rear-mount low-headroom applications. Confirm opener compatibility and required clearances before installation.
Compatibility Notice
Verify the 8-foot door height, door width, total door weight, available headroom, sideroom, backroom, track gauge, door thickness, operator type, spring specifications, cable length, drum selection, torsion-shaft length, and rear structural support before ordering. This kit is not interchangeable with standard lift, front-mount low-headroom, high-lift, or extension-spring hardware.
