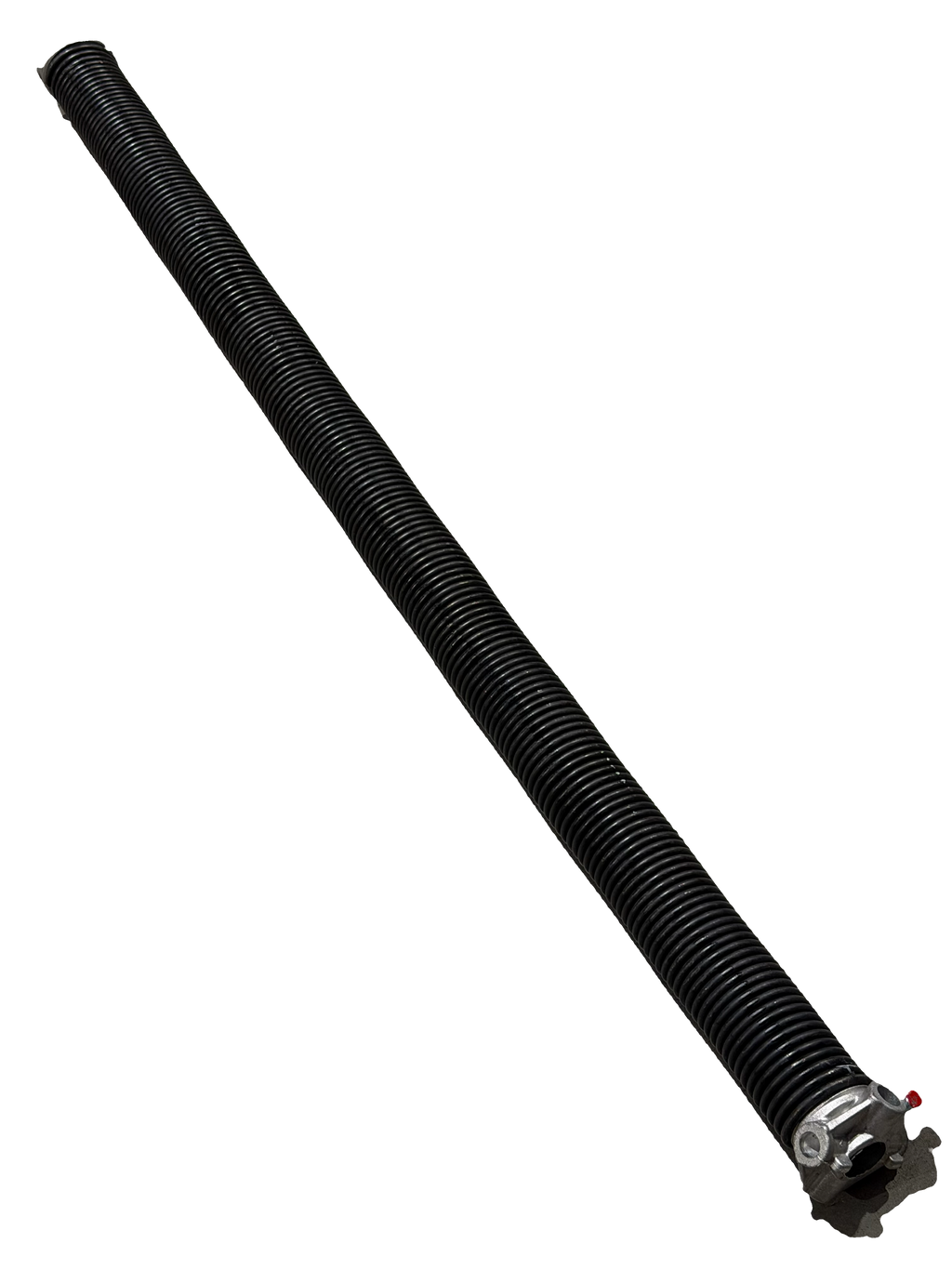

Clopay White F EZ-Set Torsion Spring – .2187" (.219") × 1-3/4" × 55"
Galvanized EZ-Set replacement spring with installed cones. Available as left wound 0145230 or right wound 0145240.
The Clopay White F EZ-Set torsion spring fits compatible Clopay, Ideal Door, and Holmes residential garage doors using the EZ-Set winding system. It features .2187-inch wire, commonly listed as .219 inch, a 1-3/4-inch inside diameter, and a 55-inch gapped coil length.
Available Options
| Wind Direction |
Part Number |
Installation Side |
Quantity |
| Left Wound |
0145230 |
Left side from inside looking out |
One spring |
| Right Wound |
0145240 |
Right side from inside looking out |
One spring |
Key Specifications
- White F EZ-Set spring identification
- .2187" wire diameter, commonly listed as .219"
- 1-3/4" inside diameter
- 55" gapped coil length
- Galvanized steel construction

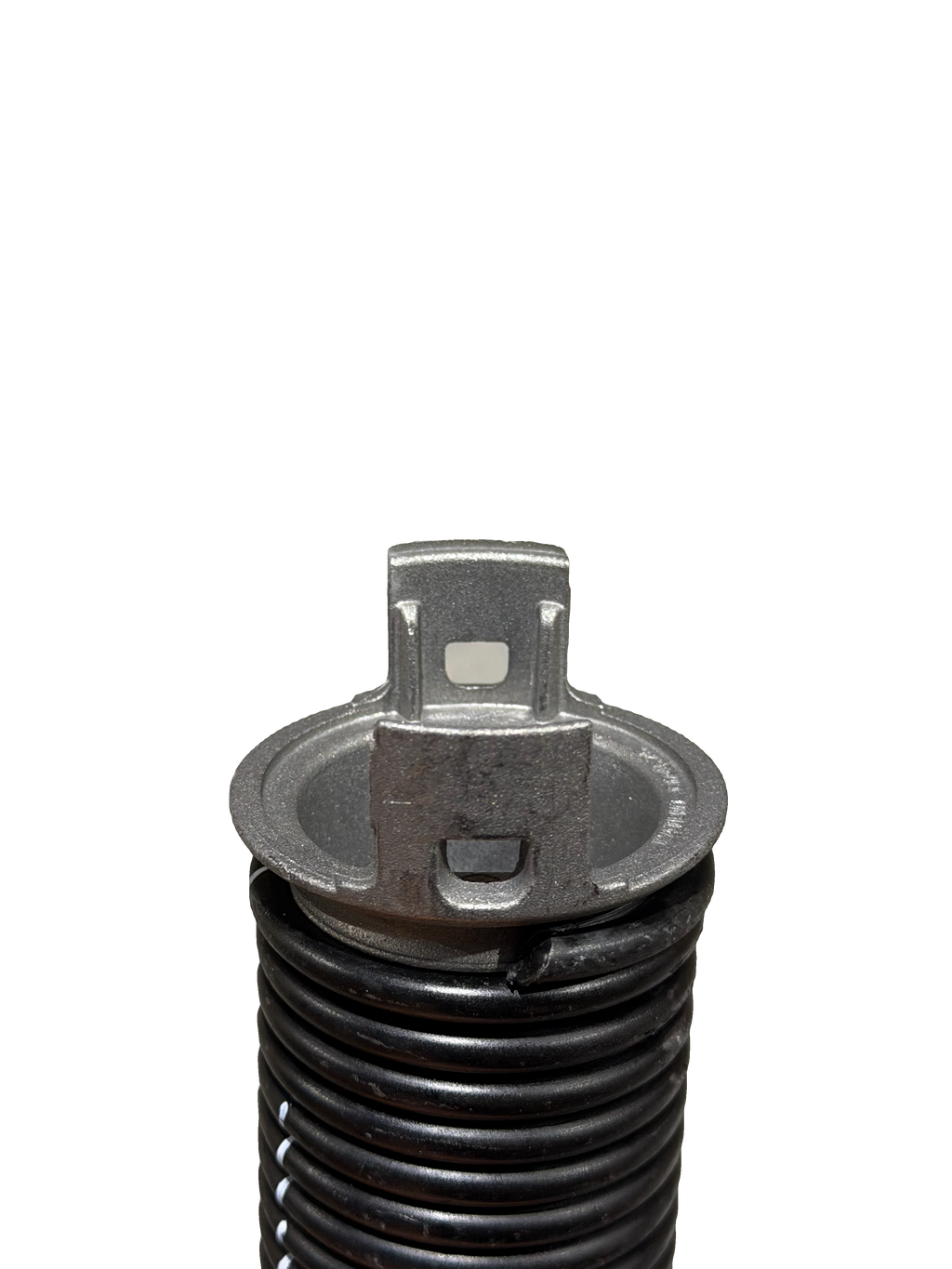

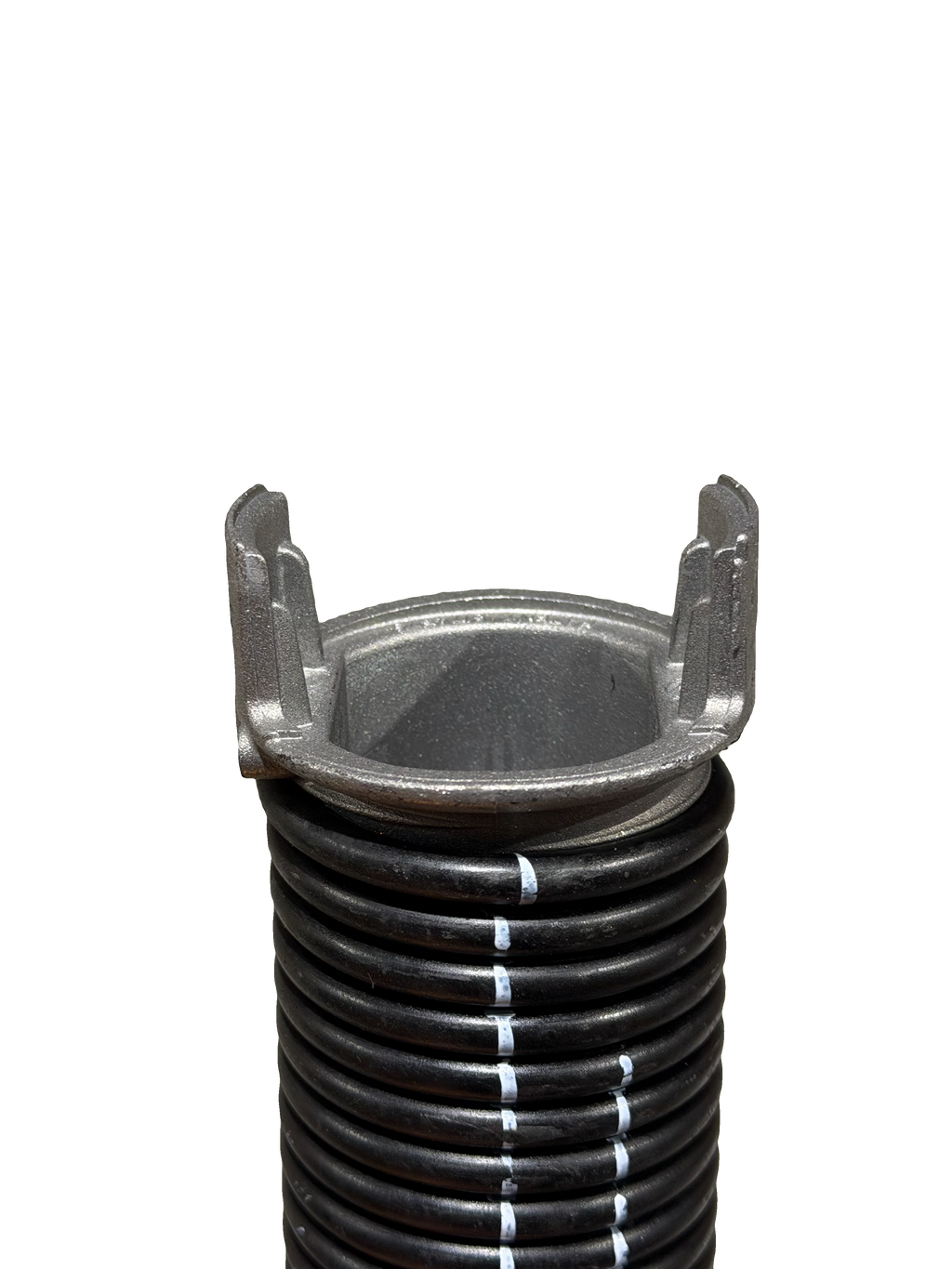

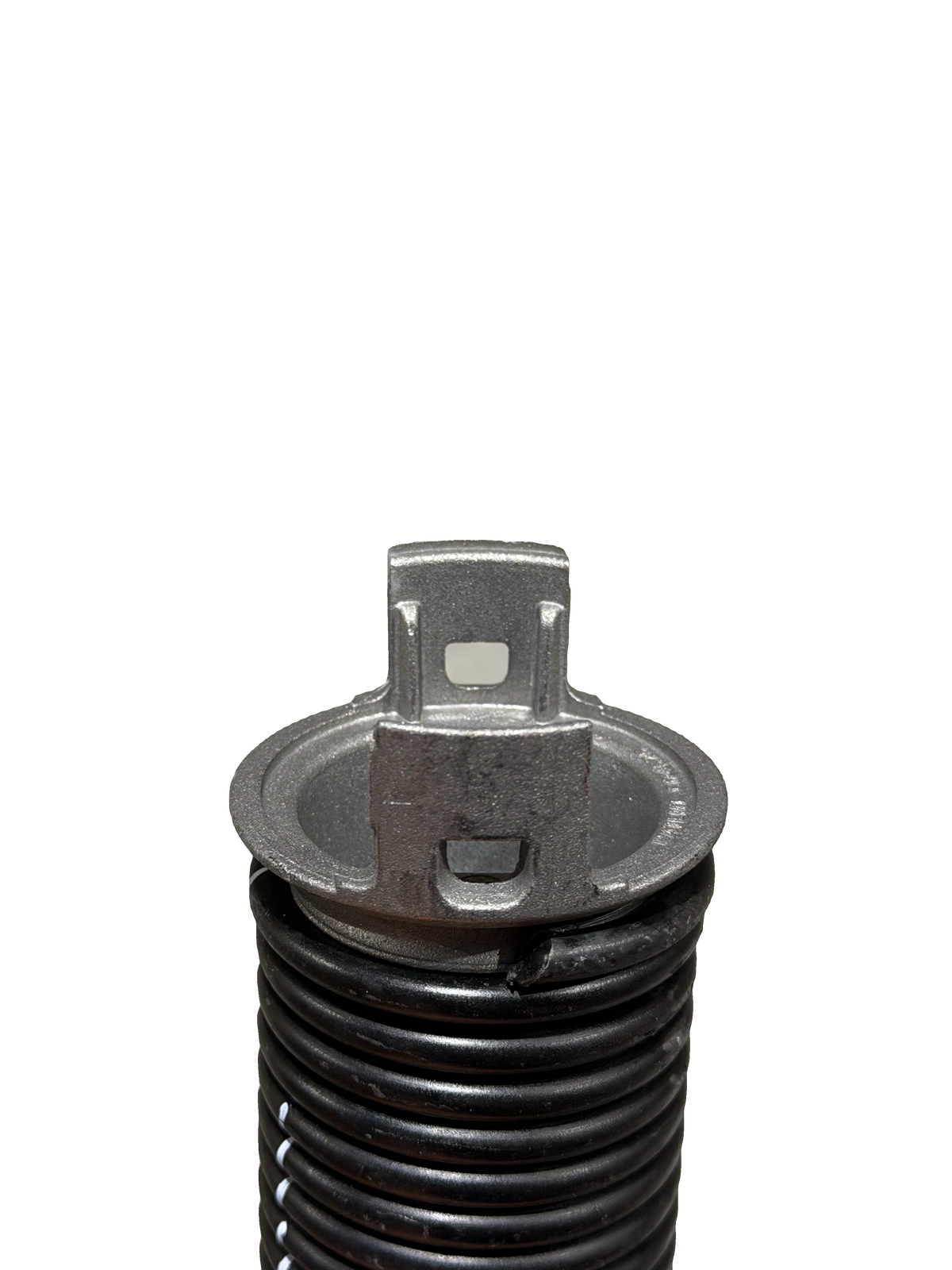

- EZ-Set-compatible cones installed
- Fits select Clopay, Ideal Door, and Holmes EZ-Set systems
- Sold individually by selected wind direction
Wind Direction:
Stand inside the garage and look toward the driveway. The left-wound spring installs on the left side, and the right-wound spring installs on the right side. Match the original part number and installation side.
Compatibility:
Do not select by color or rounded wire size alone. Confirm the .2187" or .219" wire reference, 1-3/4" inside diameter, 55" gapped length, wind direction, spring quantity, original part number, and existing EZ-Set hardware.

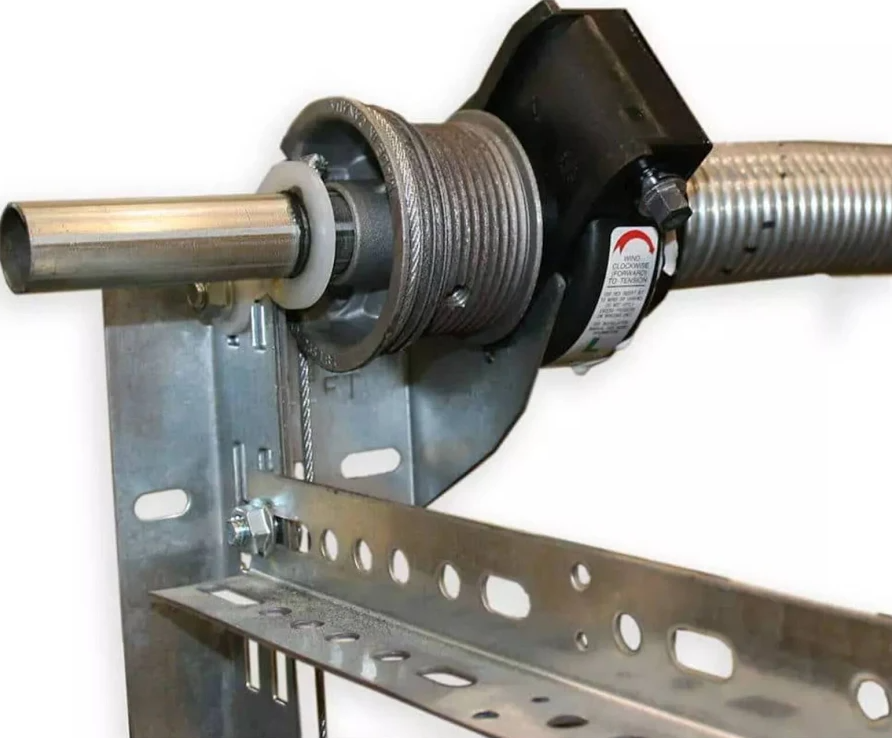

EZ-Set Systems Only:
This specially gapped spring is designed for the Clopay EZ-Set winding system. Do not substitute a conventional tightly wound torsion spring or use standard winding cones and winding bars.
Safety:
Garage door torsion springs store substantial mechanical energy. Secure the door, disconnect the opener, and fully release spring tension according to the manufacturer’s instructions before service. Professional installation is strongly recommended.
