Clopay® EZ-Set Torsion Spring – .207 × 1-3/4" × 38" Yellow A
Genuine galvanized EZ-Set replacement spring available in left-wound or right-wound configurations with compatible cones installed.
The Clopay Yellow A EZ-Set Torsion Spring is designed for compatible Clopay, Ideal Door, and Holmes residential garage doors equipped with an EZ-Set torsion spring system.
This spring is manufactured with .207" wire, has a 1-3/4" inside diameter, and measures 38" long. Choose the left-wound or right-wound option according to the original spring part number, installation side, and existing EZ-Set hardware configuration.
Yellow A Specification
Made with .207-inch wire, a 1-3/4-inch inside diameter, and a 38-inch gapped coil length.
EZ-Set Cones Installed
Supplied with compatible cones for use with the approved Clopay EZ-Set winding system.
Side-Specific Options
Left wound installs on the left side, while right wound installs on the right side when viewed from inside the garage.
Available Options
| Selection | Part Number | Installation Side | Package Contents |
|
Left Wound
|
0145130
|
Left side from inside looking out
|
One left-wound Yellow A spring with EZ-Set cones
|
|
Right Wound
|
0145140
|
Right side from inside looking out
|
One right-wound Yellow A spring with EZ-Set cones
|
EZ-Set Wind Direction and Side Guide
Stand inside the garage and look outward toward the driveway:
-
Left-wound EZ-Set spring: Installs on the left side of the garage door.
-
Right-wound EZ-Set spring: Installs on the right side of the garage door.
Important Wind-Direction Notice: EZ-Set spring placement differs from the convention commonly used with standard torsion springs. Match the replacement to the original EZ-Set part number, winding direction, installation side, dimensions, and Yellow A identification.
Key Features
- Genuine Clopay and Ideal Door EZ-Set replacement spring
- Yellow A spring identification
- .207-inch spring-wire diameter
- 1-3/4-inch inside diameter
- 38-inch gapped coil length
- Galvanized steel construction
- EZ-Set-compatible cones installed
- Available in left-wound and right-wound configurations
- Left-wound option installs on the left side from inside looking out
- Right-wound option installs on the right side from inside looking out
- Designed for compatible residential sectional garage doors
- Helps counterbalance the weight of the garage door
- Works with compatible Clopay EZ-Set winding units
- Sold individually according to the selected winding direction
Product Specifications
-
Manufacturer: Clopay / Ideal Door
-
Spring Identification: Yellow A
-
Left-Wound Part Number: 0145130
-
Right-Wound Part Number: 0145140
-
Product Type: EZ-Set torsion spring
-
Wire Diameter: .207"
-
Inside Diameter: 1-3/4"
-
Gapped Coil Length: 38"
-
Material: Steel
-
Finish: Galvanized
-
Spring System: Compatible Clopay, Ideal Door, and Holmes EZ-Set systems
-
Cones: EZ-Set-compatible cones installed
-
Door Application: Compatible residential sectional garage doors
-
Package Quantity: One spring per selected option
Left-Wound Yellow A – Part 0145130
Select part 0145130 for the left side of the garage door when standing inside the garage and looking outward. This option includes one left-wound galvanized Yellow A EZ-Set spring with compatible cones installed.
Right-Wound Yellow A – Part 0145140
Select part 0145140 for the right side of the garage door when standing inside the garage and looking outward. This option includes one right-wound galvanized Yellow A EZ-Set spring with compatible cones installed.
Do Not Select by Color Alone: Yellow A is an identification code, but it does not independently confirm the correct spring. Verify the wire size, inside diameter, gapped coil length, winding direction, mounting side, original part number, number of springs, and garage door weight.
EZ-Set Systems Only: This specially gapped spring is designed for a compatible Clopay EZ-Set winding system. It is not a conventional torsion spring and must not be installed with standard winding cones, winding bars, keyed torsion shafts, extension spring hardware, or Wayne Dalton TorqueMaster components.
Why the Coil Gaps Matter: EZ-Set springs are manufactured with deliberate spacing between the coils. This gapped design allows the spring to operate with the dedicated EZ-Set winding mechanism. A standard tightly wound torsion spring can damage the winding unit and must not be substituted.

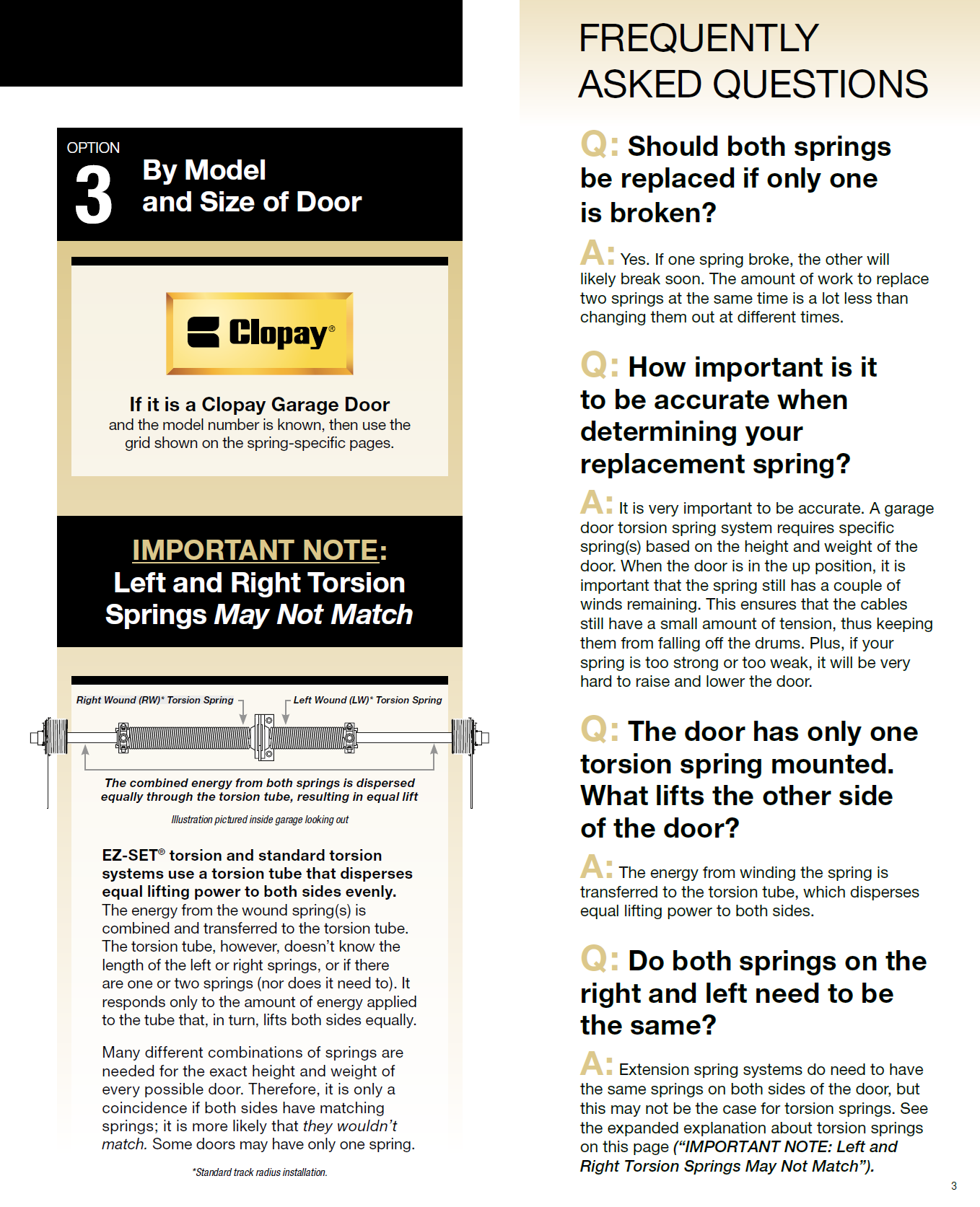

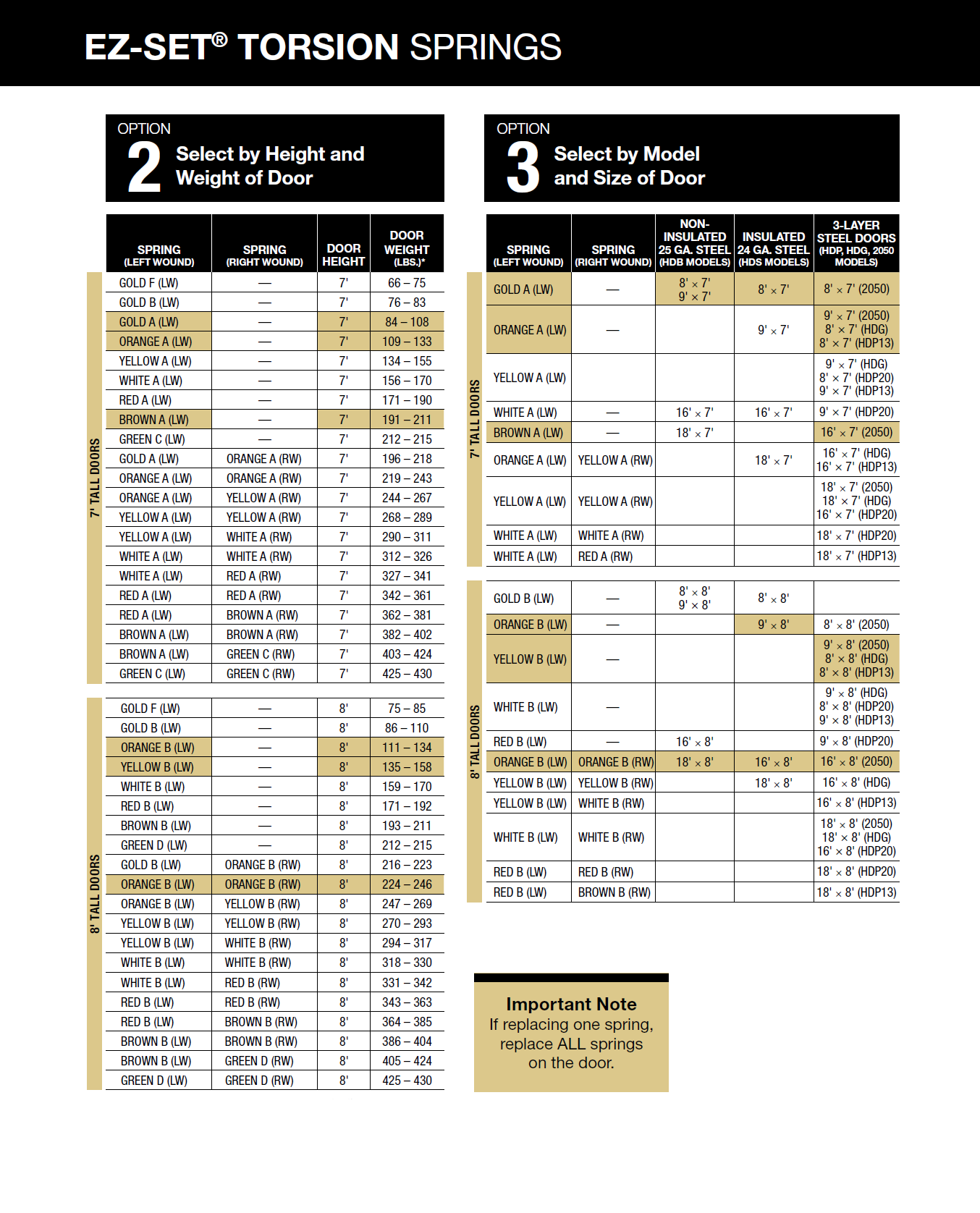

Single- and Dual-Spring Doors: Some compatible EZ-Set doors use one spring, while others require both a left- and right-wound spring. Maintain the original spring quantity, winding directions, and installation sides unless the spring system has been properly recalculated for the garage door’s weight.
Replacing a Two-Spring System: When a garage door uses two springs of similar age and one fails, replacing both springs together is generally recommended. The remaining spring has completed a similar number of operating cycles and may also be near the end of its service life.
Compatibility Notice

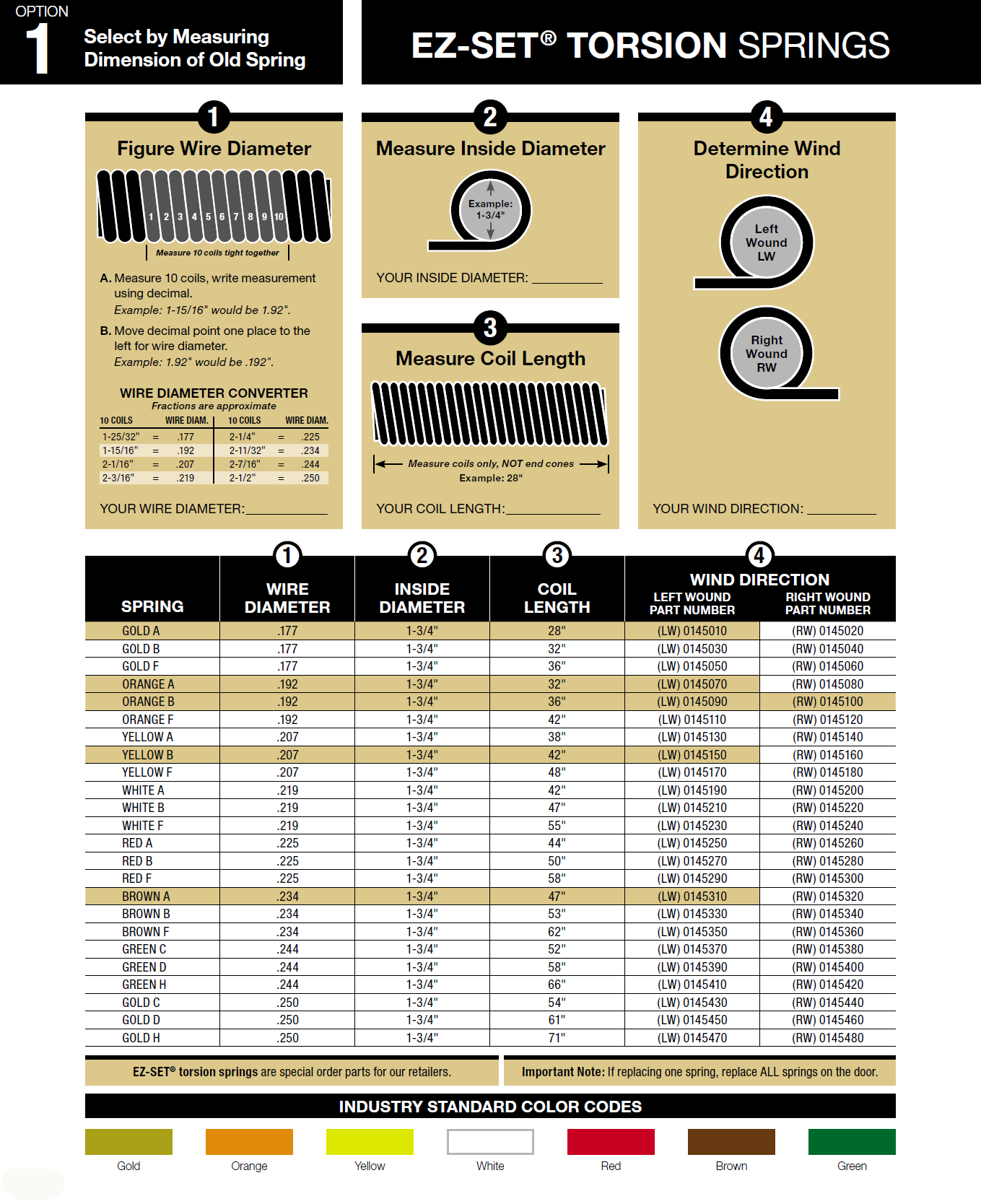

Verify the original Clopay part number, Yellow A identification, .207-inch wire size, 1-3/4-inch inside diameter, 38-inch gapped coil length, winding direction, installation side, EZ-Set cone style, number of springs, door weight, door height, track configuration, torsion tube, cable drums, winding units, and bearing supports before ordering.
Additional Hardware Not Included: EZ-Set winding units, torsion tube, cable drums, lifting cables, bearing supports, end brackets, tube retainers, mounting fasteners, drill, hex driver, and other hardware are sold separately unless specifically stated.
Extreme-Tension Safety Warning: Garage door torsion springs store substantial mechanical energy and can cause severe injury or death. Close and secure the garage door, disconnect the opener, and completely release spring tension according to the current Clopay EZ-Set instructions before removing a spring, winding unit, cable drum, torsion tube, or bearing support. Professional installation is strongly recommended.
