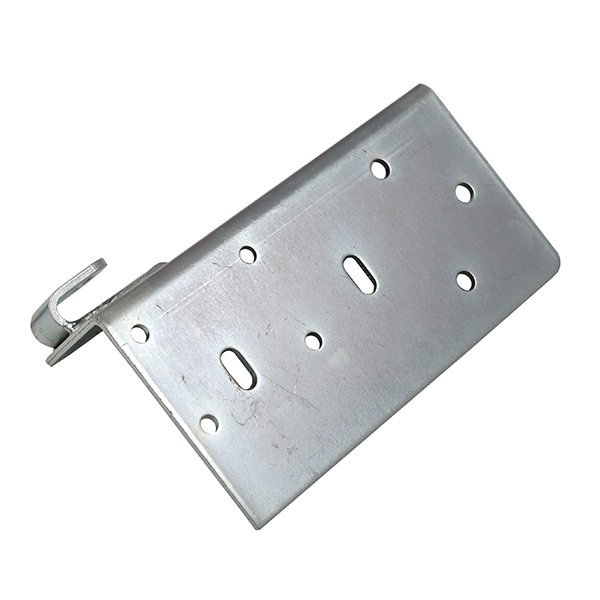

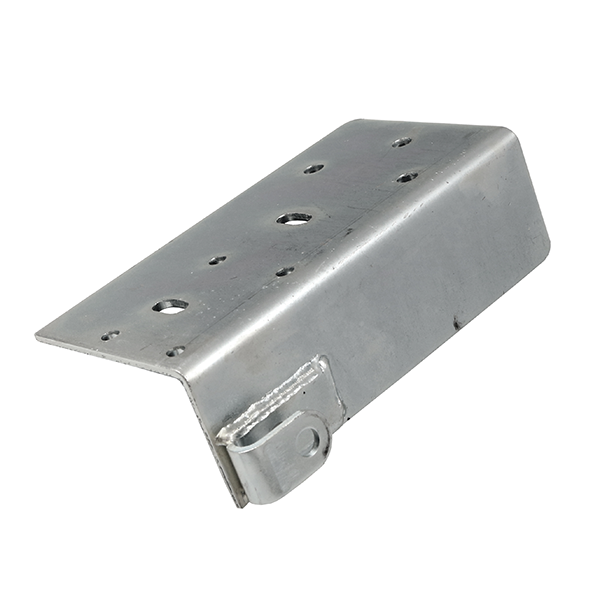

Ideal Door BB-2000 Commercial Garage Door Bottom Bracket
Heavy-duty 11-gauge bottom bracket designed for thick commercial sectional garage doors.
The Ideal Door BB-2000 Commercial Bottom Bracket provides a durable mounting point for the garage door lift cable and removable bottom roller carrier. It is designed for compatible commercial sectional doors measuring from 1-3/4" to 3" thick.
Its removable roller-carrier design allows the bottom roller to be serviced or replaced without removing the lifting cable from the main bracket. This helps simplify future maintenance while keeping the cable connection secured to the door.
Commercial-Duty Strength Manufactured from heavy-duty 11-gauge galvanized steel for dependable cable and roller support.
Removable Roller Carrier Allows the bottom roller to be changed without disconnecting the lift cable.
Thick-Door Compatibility Designed for compatible commercial doors from 1-3/4" through 3" thick.
Key Features
- BB-2000 commercial garage door bottom bracket
- Supports the lift-cable connection and removable roller carrier
- For compatible sectional doors from 1-3/4" to 3" thick
- Heavy-duty 11-gauge galvanized-steel construction
- Galvanized finish helps resist rust and corrosion
- Replaceable roller-carrier design simplifies roller maintenance
- Works with separate BB-2000 carriers for 2" or 3" track
- Original Ideal Door manufacturer replacement component
Product Specifications
-
Model: BB-2000
-
Material: 11-gauge galvanized steel
-
Compatible Door Thickness: 1-3/4" to 3"
-
Track Compatibility: 2" or 3" track with the corresponding roller carrier
-
2" Track Roller Carrier: Part 0120792, sold separately
-
3" Track Roller Carrier: Part 0120793, sold separately
-
Overall Dimensions: 6" H x 3-1/8" W x 1-3/4"D
-
Quantity: One bracket per package
Parts Sold Separately
- BB-2000 roller carrier for the selected track size
- Bottom garage door roller
- Lift cable
- BB-1000/BB-2000 installation fastener kit
Compatibility Notice: Verify the door thickness, track size, roller-carrier type, mounting-hole pattern, cable hookup and existing bracket dimensions before ordering. Select the correct 2" or 3" roller carrier for your track system.
Safety Warning: Garage door bottom brackets are connected to lifting cables that may remain under extreme spring tension. Never loosen or remove the bracket while the cables or springs are under tension. Installation by a qualified garage door technician is strongly recommended.
