Heavy-duty reinforced bottom brackets designed for low-headroom garage doors with 2-inch track and an outside cable hookup.

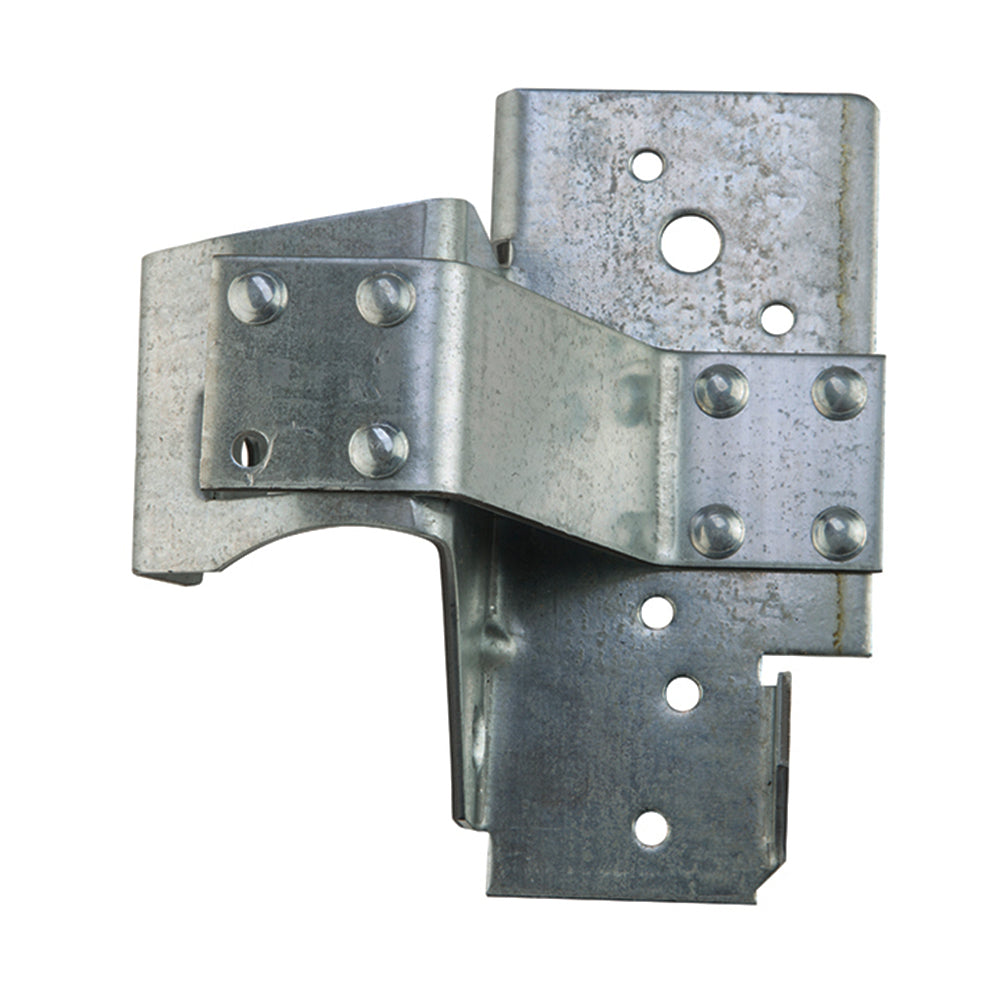

The BB-5R reinforced bottom bracket provides a durable mounting point for the garage door lift cable and bottom roller. It is designed for compatible sectional garage doors using a low-headroom track configuration where the lifting cable connects outside the track.
Manufactured from heavy-duty 11-gauge galvanized steel, the BB-5R features a reinforced design for added strength in demanding residential and light-commercial applications. It is an excellent replacement for bent, rusted, cracked, or worn low-headroom bottom brackets.
Reinforced Construction Built with additional reinforcement for greater strength and dependable cable support.
Low-Headroom Compatible Designed for garage doors using low-headroom hardware and 2-inch track.
Galvanized Steel Corrosion-resistant finish provides lasting durability in garage environments.
Key Features
- Reinforced BB-5R low-headroom bottom bracket design
- For compatible sectional garage doors with 2-inch track
- Designed for outside lift-cable hookup systems
- Supports the bottom roller and lift-cable connection
- Heavy-duty 11-gauge galvanized-steel construction
- Suitable for residential and light-commercial doors
- Made in the USA
Product Specifications
-
Model: BB-5R
-
Track Size: 2-inch track
-
Track Configuration: Low headroom
-
Cable Setup: Outside hookup
-
Material: 11-gauge galvanized steel
-
Overall Height: Approximately 6-1/2 inches
-
Overall Width: Approximately 3 inches
-
Side Flange: Approximately 2-3/4" × 2-1/2" × 1"
Compatibility Notice: Verify your existing bracket model, track size, cable hookup position, roller placement, mounting pattern, and available clearance before ordering. The BB-5R is intended for compatible low-headroom systems using 2-inch track.
Safety Warning: Garage door bottom brackets are attached to lift cables that can remain under extreme spring tension. Do not loosen or remove the brackets until all spring and cable tension has been safely released. Professional installation is strongly recommended.
