Heavy-duty commercial bottom bracket designed to support the lift cable and bottom roller on sectional overhead doors.

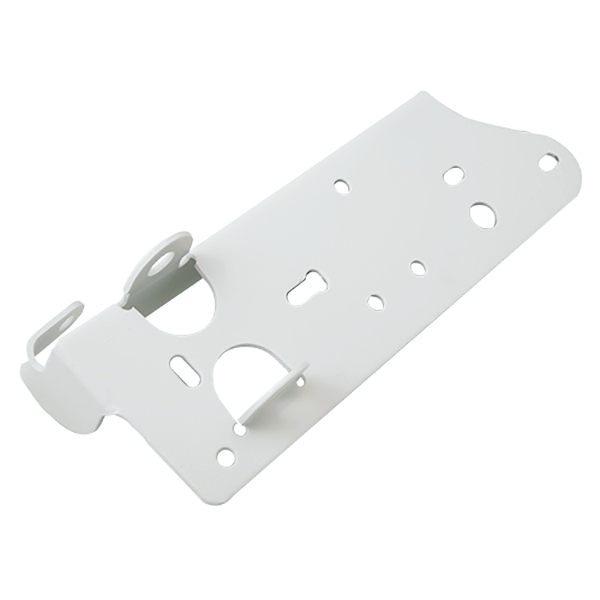

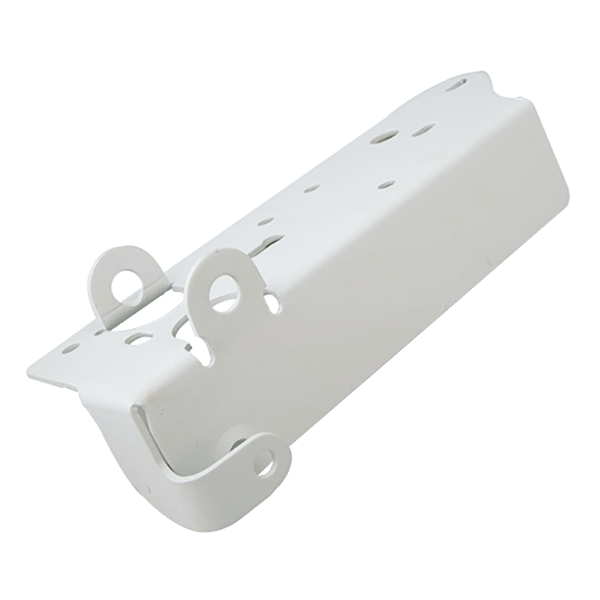

The Ideal Door CBB-95 Commercial Bottom Bracket installs at the lower corner of a compatible sectional garage door. It provides a strong connection point for the lift cable while positioning and supporting the bottom roller in a 2-inch track system.
Manufactured from heavy-duty 11-gauge galvanized steel, the CBB-95 is built for the higher loads and demanding operating conditions commonly found on commercial overhead doors. It is an ideal replacement for a worn, bent, cracked, or corroded original bottom fixture.
Commercial-Duty Strength Heavy 11-gauge steel construction provides dependable support for commercial sectional doors.
Cable and Roller Support Provides mounting points for the garage door lift cable and bottom roller.
Galvanized Finish Helps resist corrosion and provides durable performance in commercial garage environments.
Key Features
- CBB-95 commercial garage door bottom bracket
- Designed for compatible 2-inch track systems
- Attaches the lift cable and supports the bottom roller
- Heavy-duty 11-gauge galvanized-steel construction
- Rated for loads up to approximately 500 lbs.
- Compatible with 7/16-inch-diameter roller stems
- Fits compatible doors from 1-3/8 inches to 2 inches thick
- Suitable for many steel commercial sectional garage doors
Product Specifications
-
Model: CBB-95
-
Color: White Powder Coating
-
Track Size: 2-inch track
-
Material: 11-gauge galvanized steel
-
Load Rating: Up to approximately 500 lbs.
-
Overall Height: Approximately 9-1/4 inches
-
Overall Width: Approximately 3 inches
-
Side Flange: Approximately 1-3/4 inches
-
Compatible Door Thickness: 1-3/8 inches to 2 inches
-
Product Overall Dimensions:
-
Roller Stem Compatibility: 7/16-inch diameter
Choose the Correct Side: CBB-95 bottom brackets are handed. Confirm whether you need the left-side or right-side bracket as viewed from inside the building looking outward. Also verify your track size, mounting pattern, door thickness and roller-stem diameter before ordering.
Safety Warning: Garage door bottom brackets are connected to lift cables that may remain under extreme spring tension. Never loosen or remove a bottom bracket while the springs or cables are under tension. Professional installation is strongly recommended.
