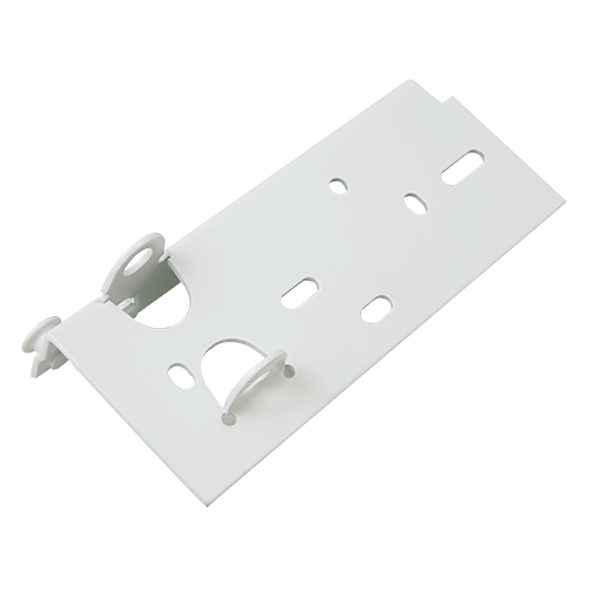

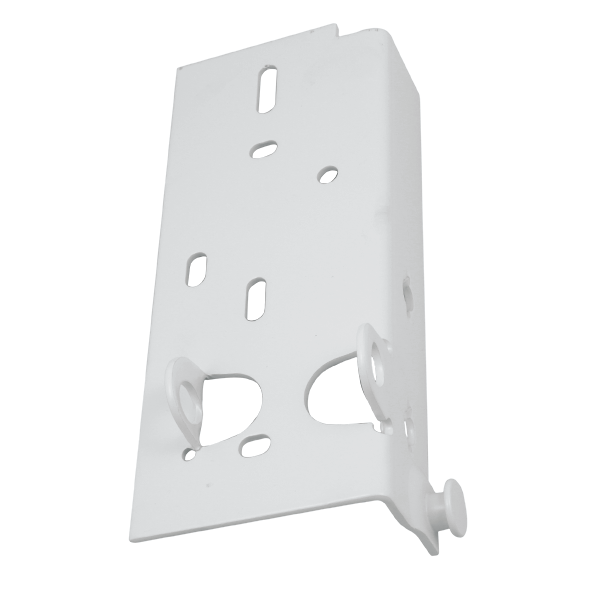

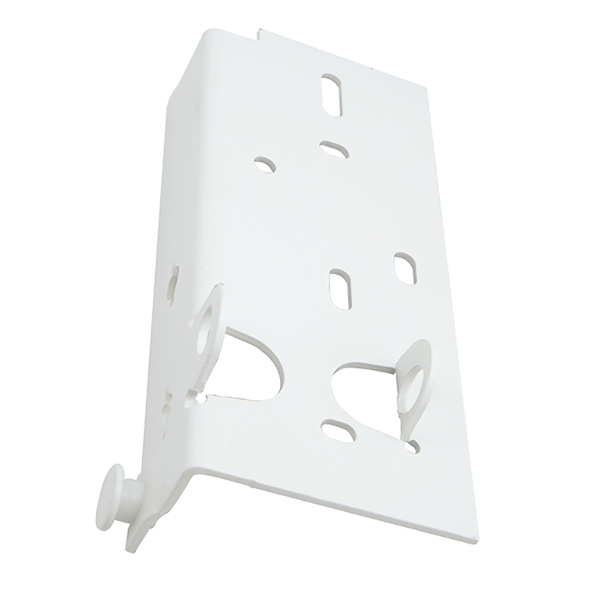

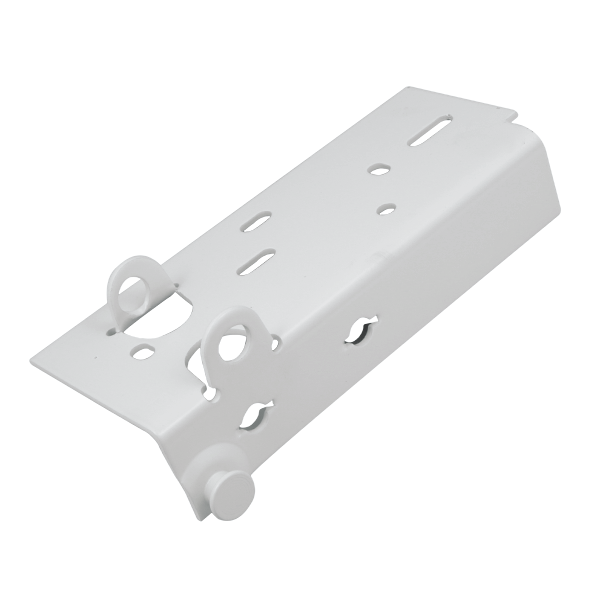

Ideal Door SRBB-75 Heavy-Duty Safe-T-Bracket
Heavy-duty residential bottom bracket with an integrated safety design and clean white powder-coated finish.
The Ideal Door SRBB-75 Safe-T-Bracket installs at the lower corner of a compatible residential sectional garage door. It provides the connection point for the garage door lift cable while supporting and positioning the bottom roller.
Unlike a conventional bottom fixture, the patented Safe-T-Bracket design helps prevent accidental removal while the lifting cable is under spring tension. This added safety feature makes it an excellent original replacement for compatible Ideal Door residential steel garage doors.
Safe-T-Bracket Design Helps discourage accidental bracket removal while the lift cable remains under tension.
Cable and Roller Support Provides secure attachment for the lifting cable and proper positioning of the bottom roller.
White Powder-Coated Finish Provides a clean appearance with added protection against moisture, scratches, and corrosion.
Key Features
- SRBB-75 heavy-duty residential bottom bracket
- Patented Safe-T-Bracket safety design
- Helps prevent accidental removal while under cable tension
- Provides the lift-cable attachment point
- Supports and positions the bottom garage door roller
- Designed for compatible Ideal Door residential steel garage doors
- Durable white powder-coated finish
- Genuine Ideal Door replacement hardware
Product Details
-
Model: SRBB-75
-
Ideal Door Part Number:
- 4118598 - Left
- 4118599 - Right
-
Bracket Type: Heavy-duty Safe-T-Bracket bottom fixture
-
Finish: White powder coat
-
Approximate Height: 7-1/8"
-
Approximate Width: 3-1/8"
-
Approximate Side Flange: 1-1/4"
-
Application: Compatible residential steel sectional garage doors
-
Function: Lift-cable attachment and bottom-roller support
-
Quantity: One bracket per package
Compatibility Notice: Compare the bracket model, mounting-hole pattern, door construction, roller position, cable connection, and finish with the existing hardware before ordering. The opposite-side bracket, roller, cable, and mounting fasteners may be sold separately.
Safety Warning: The Safe-T-Bracket design helps reduce the risk of accidental removal, but the bracket remains connected to a lifting cable under extreme spring tension. Never loosen, adjust, or remove it while the cable or spring system is under tension. Installation by a qualified garage door technician is strongly recommended.
