Clopay EZ-Set Garage Door Cable Drum
Genuine cast-aluminum cable drums available in left-hand, right-hand, or matching-pair configurations for compatible Clopay and Ideal Door EZ-Set torsion systems.
The Clopay EZ-Set Cable Drum mounts at the end of a compatible EZ-Set torsion tube and provides the grooved surface that guides the garage door lifting cable as the door opens and closes.
Choose the left-hand drum, right-hand drum, or complete left-and-right pair based on the parts needed for your repair. Each drum is side-specific and must be installed on the correct end of the torsion assembly to maintain proper cable routing and balanced door movement.
Precision Cable Grooves Guides the lifting cable in an orderly pattern as it winds and unwinds during door travel.
EZ-Set System Fit Designed specifically for compatible Clopay and Ideal Door EZ-Set torsion spring assemblies.
Flexible Purchase Options Available as left only, right only, or both sides for a complete drum replacement.
```
Available Options
`
| Selection |
Part Number |
Package Contents |

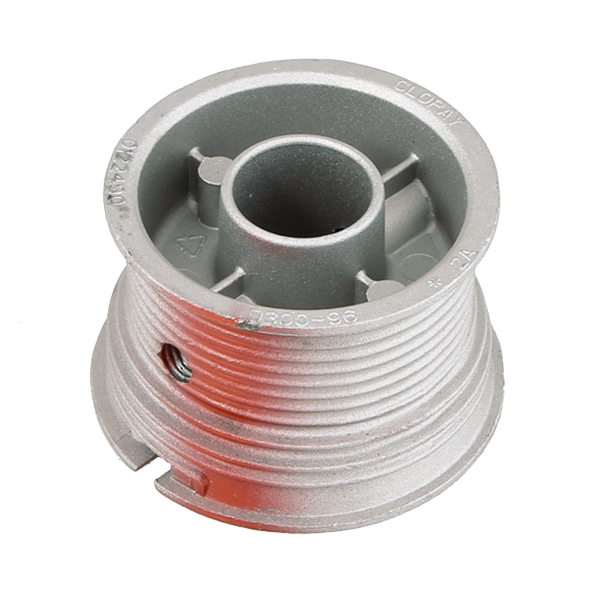

| Left Hand |
0122490 |
One left-side EZ-Set cable drum |

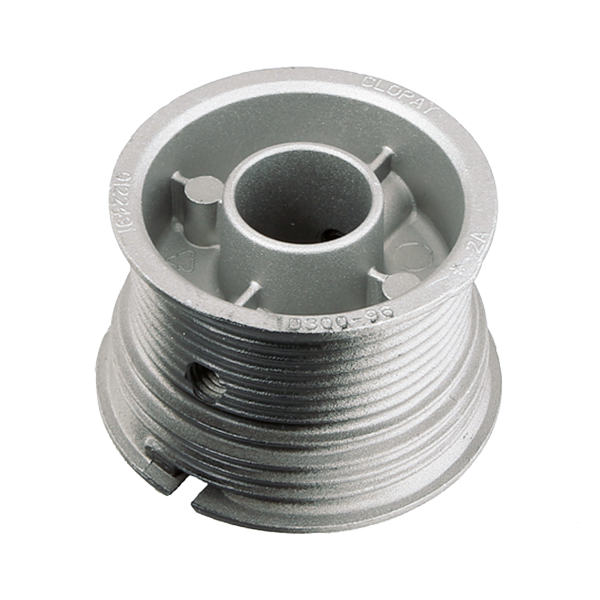

| Right Hand |
0122491 |
One right-side EZ-Set cable drum |
| Left & Right Pair |
0122490 + 0122491 |
One left-hand and one right-hand cable drum |
How to Determine Left or Right: Stand inside the garage and face outward toward the driveway. The drum on your left is the left-hand drum, and the drum on your right is the right-hand drum.
Key Features
- Genuine Clopay and Ideal Door replacement component
- Designed for compatible EZ-Set torsion spring systems
- Available as left hand, right hand, or a complete pair
- Precision-grooved surface guides the garage door lifting cable
- Helps maintain consistent cable winding and door balance
- Side-specific construction ensures proper cable direction
- Made from durable cast aluminum
- Compatible with applicable standard-lift track systems
- Compatible with applicable low-headroom track systems
- Designed for compatible residential doors up to 8' high
- Suitable for replacing worn, cracked, bent, or damaged drums
- Original manufacturer replacement part
Product Specifications
-
Manufacturer: Clopay / Ideal Door
-
Left-Hand Part Number: 0122490
-
Right-Hand Part Number: 0122491
-
Product Type: EZ-Set torsion spring cable drum
-
Material: Cast aluminum
-
Spring System: Clopay and Ideal Door EZ-Set torsion
-
Track Applications: Compatible standard-lift and low-headroom systems
-
Maximum Published Door Height: Up to 8'
-
Mounting Location: Left or right end of the EZ-Set torsion tube
-
Primary Function: Lifting-cable winding, storage, and guidance
-
Door Application: Compatible residential sectional garage doors
-
Package Quantity: Based on the selected individual or pair option
How the Cable Drums Work
- The bottom lifting cables attach to the lower corners of the garage door.
- Each cable travels upward and seats in the grooves of its corresponding EZ-Set drum.
- As the torsion tube rotates, both drums wind or unwind the cables evenly.
- The spring system counterbalances the door while the drums control cable movement.
- Correct drum alignment and cable tension help the door remain level during operation.
EZ-Set Systems Only: These drums are designed specifically for compatible Clopay and Ideal Door EZ-Set torsion systems. They are not direct replacements for conventional D400-series drums, keyed torsion-shaft drums, extension spring pulleys, or Wayne Dalton TorqueMaster components.
Left and Right Are Not Interchangeable: Each drum has grooves designed for a specific cable-winding direction. Installing a drum on the wrong side can cause incorrect cable tracking, uneven door movement, cable overlap, or cable loss.
Replacing One Drum: Individual drums are available for repairs where only one side is damaged. Inspect the opposite drum, both lifting cables, bottom brackets, torsion tube, winding units, and bearing supports before deciding to replace only one side.
Pair Replacement
The pair option includes one left-hand 0122490 drum and one right-hand 0122491 drum. Replacing both drums together may be appropriate when both components show wear, corrosion, damaged grooves, cable scoring, or mismatched previous repairs.
Lifting Cables Not Included: Garage door lifting cables, bottom brackets, torsion tube, winding units, springs, bearing supports, fasteners, and other EZ-Set components are sold separately unless specifically stated in the selected option.
Compatibility Notice
Verify the original part number, left- or right-hand position, EZ-Set torsion system, door height, track configuration, torsion-tube style, cable diameter, cable length, cable-end design, winding-unit arrangement, bottom-bracket style, and original drum profile before ordering. Matching only the Clopay brand does not confirm compatibility.
Extreme-Tension Safety Warning: Garage door torsion springs, lifting cables, cable drums, and bottom brackets operate under extreme tension. Never loosen a drum, remove a lifting cable, or service an EZ-Set assembly while the spring remains wound. Close and secure the door, disconnect the opener, and fully release spring tension according to the current Clopay EZ-Set instructions. Professional installation is strongly recommended.
