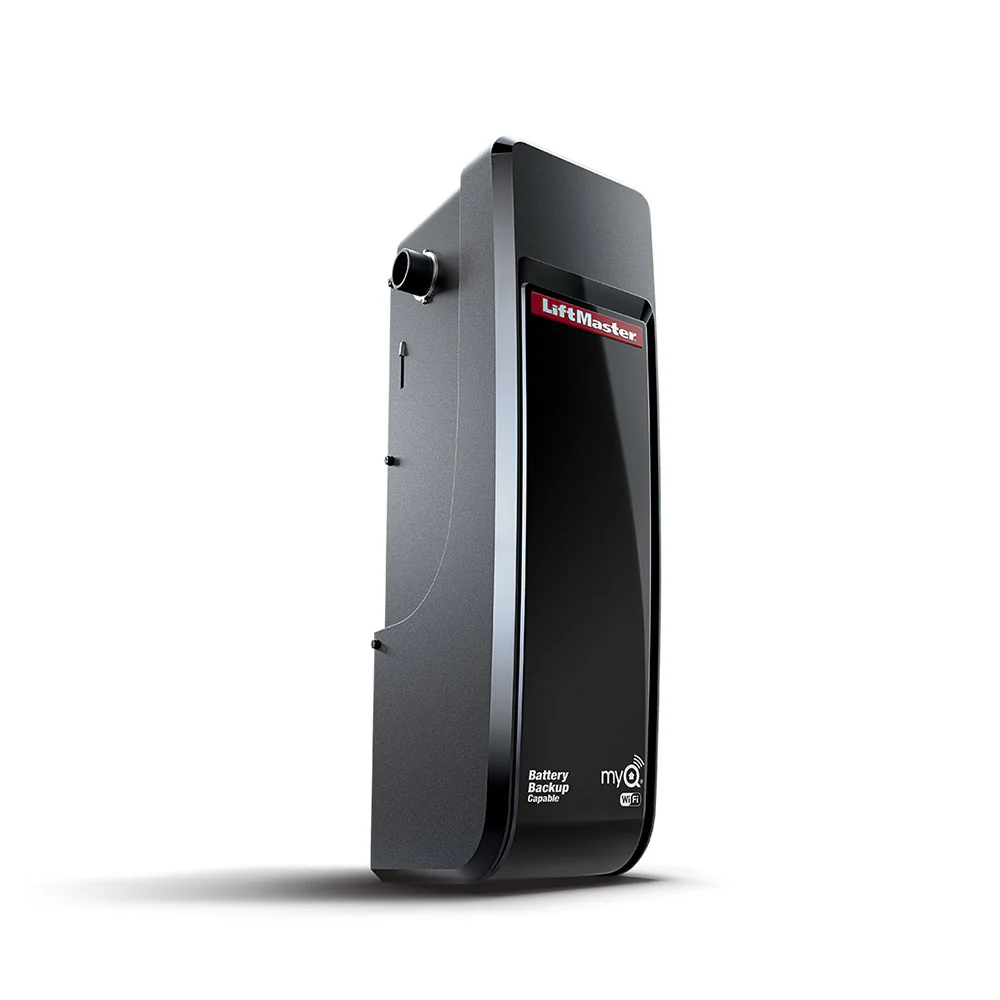

LiftMaster LJ8900W Light-Duty Commercial Jackshaft Operator
The LiftMaster LJ8900W is a wall-mounted commercial door operator designed for smaller, lighter sectional doors with high-lift or vertical-lift track systems. By mounting beside the door instead of overhead, it keeps ceiling space clear while providing quiet, dependable, and connected operation.
It is ideal for dock doors, small warehouses, storage facilities, outbuildings, and small businesses with light-duty operating requirements.
Key Features
Wall-Mounted Design
Installs beside the door and eliminates the need for an overhead trolley rail.
```
Light-Duty Commercial Operation
Designed for up to 10 cycles per hour and fewer than 25 cycles per day.
Built-In Wi-Fi and myQ
Monitor and control the operator remotely using a compatible smartphone, tablet, or computer.
Universal Mounting
Can be installed on either the left or right side of the door without special operator configurations.
Smooth Start and Stop
Reduces sudden door movement and helps limit wear on the door system.
Security+ 2.0
Rolling-code technology helps prevent unauthorized access by allowing operation from registered devices only.
Battery Backup Capable
Supports an optional battery backup system for access during a power outage. Battery sold separately.
Automatic Door Lock Capable
Compatible with an optional automatic lock for added security. Lock sold separately.
```
Smart Business Connectivity
-
Remote monitoring and control: Check door status and operate the door through myQ technology.
-
Built-in Wi-Fi: Connects directly to the facility’s wireless network without a separate internet gateway.
-
Real-time alerts: Receive door-status notifications by email or push notification.
-
Scheduling: Create operating schedules through compatible myQ services.
Safety and Operation
-
UL 325-compliant design when installed with the required monitored entrapment protection devices.
-
The Protector System reverses the door when the safety sensors detect an obstruction.
-
Cable tension monitoring helps detect loose or improperly tensioned lift cables.
-
Emergency manual release allows the door to be disconnected and operated manually during an emergency or power outage.
-
Automatic reconnection: Pulling the emergency release handle again re-engages the operator.
Specifications
| Operator Type |
Wall-mounted commercial jackshaft operator |
| Recommended Door Type |
Smaller, lighter commercial sectional doors with high-lift or vertical-lift track |
| Duty Rating |
Up to 10 cycles per hour and fewer than 25 cycles per day |
| Maximum Door Height |
Up to 14 feet |
| Maximum Door Width |
Up to 18 feet |
| Maximum Door Area |
Up to 180 square feet |
| Operating Speed |
Approximately 7.5–8.5 inches per second |
| Limit Setting |
Electronic |
| Programming |
Tactile programming buttons |
| Circuit Board |
Solid-state circuit board |
| Wall Control |
Single-button control station |
| Mounting |
Universal left- or right-side installation |
| Connectivity |
Built-in Wi-Fi with myQ technology |

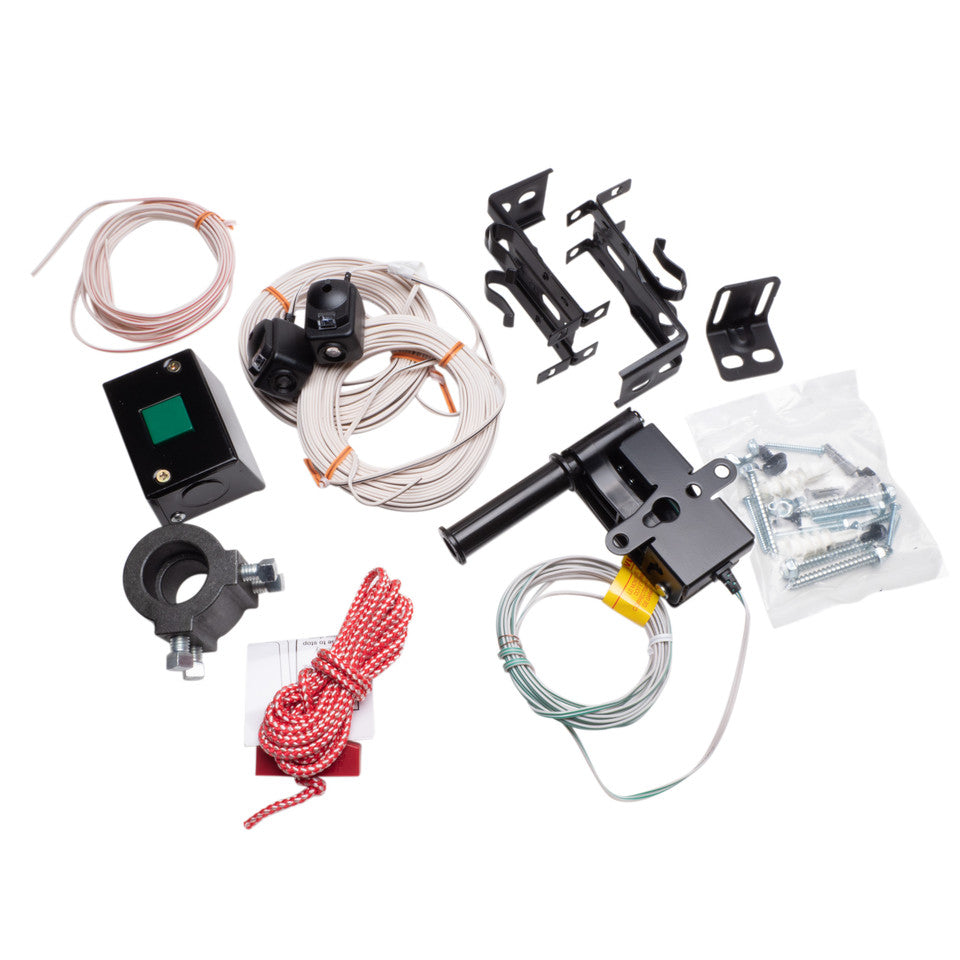

What's Included
-
LiftMaster LJ8900W light-duty commercial operator
-

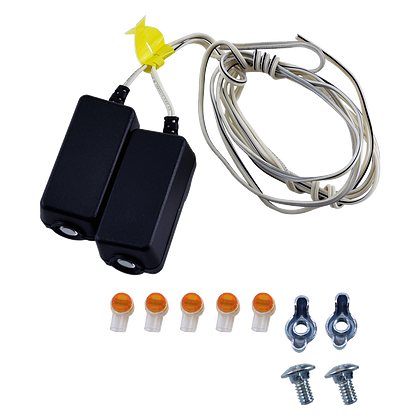

Safety Sensor Kit — Part #041A5034
-

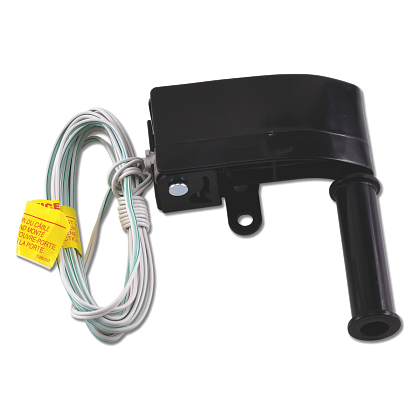

Cable Tension Monitor Kit — Part #041A6104
- Single-button wall control station
- Emergency release rope and handle
Important: The LJ8900W is intended for properly balanced sectional doors with compatible high-lift or vertical-lift hardware. Confirm the door’s dimensions, weight, track configuration, shaft clearance, and operating requirements before ordering. Battery backup and automatic door lock accessories are sold separately.
