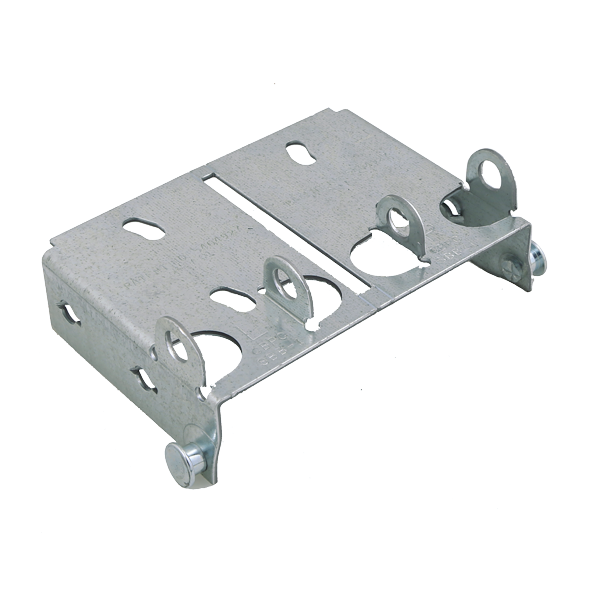

Clopay SBB-1 Safe-T-Bracket Residential Bottom Bracket Pair
Genuine Clopay safety bottom fixtures for compatible residential steel garage doors using 2-inch track.
The Clopay SBB-1 Safe-T-Bracket Set installs at the lower left and right corners of a compatible residential sectional garage door. Each bracket provides the attachment point for the lifting cable while supporting the bottom garage door roller.
Unlike a conventional bottom fixture, the patented Safe-T-Bracket design helps prevent accidental removal while the lifting cable remains under spring tension. The package includes both side-specific brackets required for one compatible garage door.
Safe-T-Bracket Design Helps prevent accidental bracket removal while the lifting cable remains under tension.
Cable & Roller Support Provides the lower cable attachment point and supports the bottom garage door roller.
Left & Right Pair Includes one side-specific bracket for each bottom corner of the garage door.
Key Features
- Genuine Clopay and Ideal Door replacement hardware
- SBB-1 residential Safe-T-Bracket design
- Designed for compatible residential steel sectional doors
- Made for compatible 2-inch garage door track systems
- Helps prevent accidental removal while under cable tension
- Provides the lower attachment point for the lifting cable
- Supports the bottom garage door roller
- Milford-style drilled cable pin
- Side-specific left- and right-hand construction
- Suitable for replacing bent, damaged, worn, or corroded bottom fixtures
- Sold as a complete left- and right-hand pair
Product Specifications
-
Manufacturer: Clopay / Ideal Door
-
Part Number: 1033071
-
Model: SBB-1
-
Manufacturer Description: BRKT BTM SBB-1
-
Product Type: Residential garage door safety bottom-bracket pair
-
Door Application: Compatible residential steel sectional garage doors
-
Track Compatibility: Compatible 2" track
-
Cable Connection: Milford-style drilled pin
-
Mounting Location: Bottom left and right corners of the door
-
Primary Functions: Lift-cable attachment and bottom-roller support
-
Package Quantity: One left and right pair
Approximate Dimensions
-
Overall Height: Approximately 4-3/16"
-
Overall Width: Approximately 2-11/16"
-
Side-Flange Depth: Approximately 1-3/8"
Compare the original bracket profile and mounting-hole arrangement before ordering, as dimensions and hole spacing may vary between garage door models.
Common Applications
- Replacing a damaged residential bottom bracket
- Restoring the lower lift-cable attachment point
- Replacing a bent or corroded bottom roller fixture
- Repairing compatible Clopay or Ideal Door steel sections
- Replacing both bottom fixtures during a complete hardware repair
How to Identify Left and Right: Stand inside the garage and face outward toward the driveway. The bracket on your left is the left-hand bracket, and the bracket on your right is the right-hand bracket.
Safe-T-Bracket Design
The SBB-1 incorporates a safety-oriented attachment arrangement intended to reduce the risk of accidentally removing the main bottom fixture while the lifting cable is under spring tension. This feature does not make the bracket safe for untrained removal or service.
Standard-Lift Application: Part 1033071 is the standard SBB-1 bracket pair. It should not be confused with part 1033072, which is the SBB-1 low-headroom bracket configuration.
Steel Door Application: This bracket set is listed for compatible residential steel garage doors. It may not fit wood doors, commercial sections, specialty low-headroom systems, or doors using a different bottom-fixture profile.
Additional Components: Bottom rollers, lifting cables, cable fittings, fasteners, hinges, and other door hardware are sold separately unless specifically included by the seller.
Compatibility Notice
Verify the original Clopay or Ideal Door part number, SBB-1 bracket profile, door material, track size, panel thickness, roller-stem diameter, cable-end design, mounting-hole pattern, side-flange depth, standard- or low-headroom configuration, and available clearance before ordering.
Extreme-Tension Safety Warning: Garage door bottom brackets and lifting cables remain under extreme spring tension, including when the door is open. Never loosen, remove, cut, or adjust a bottom bracket while the spring or cable system is under tension. The Safe-T-Bracket design does not eliminate this hazard. Replacement must be performed by a qualified garage door technician.
