Residential Garage Door Extension Spring Hardware Kit
Complete professional-grade hardware boxes for compatible 7-foot and 8-foot residential garage doors using extension springs.
Complete a new installation or replace worn garage door hardware with a convenient Residential Extension Spring Hardware Kit. Each kit combines the essential brackets, pulleys, rollers, cables, fixtures, and mounting hardware required for a compatible residential sectional garage door with an extension spring system.
Kits are available for 7-foot and 8-foot garage doors in both single-wide and double-wide configurations. Select the option that matches your actual door height, width, track system, and extension spring setup.
Complete Extension Hardware Combines commonly required residential extension-spring components into one convenient package.
Multiple Door Configurations Available for 7-foot and 8-foot single-wide or double-wide residential garage doors.
Smooth, Reliable Travel Nylon rollers and pulley assemblies help reduce friction, vibration, and operating noise.
Available Configurations
| Model |
Door Height |
Door Width Type |
Typical Application |
| EXTBX7S |
7' |
Single Wide |
Standard single-car residential doors |
| EXTBX7D |
7' |
Double Wide |
Wider double-car residential doors |
| EXTBX8S |
8' |
Single Wide |
Taller single-car residential doors |
| EXTBX8D |
8' |
Double Wide |
Taller, wider double-car residential doors |

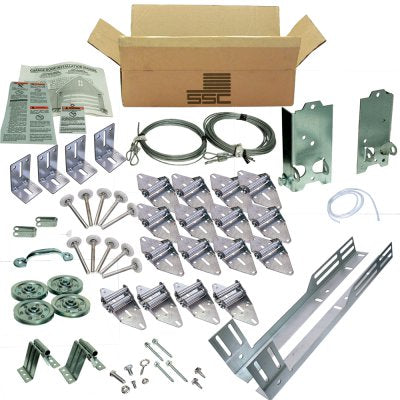

Typical Hardware Included
- Residential jamb brackets
- Residential bottom brackets
- 2" nylon garage door rollers with 11-ball bearings
- 3" extension spring pulleys
- Pulley fork assemblies
- Garage door lifting cables
- Extension spring safety-containment cables
- Emergency release or pull rope
- Flag brackets
- Garage door lift handle
- Assorted bolts, nuts, screws, and mounting fasteners
- Warning labels and safety stickers
- Installation information and instructions
Contents Vary by Selection: Hardware quantities, cable lengths, pulley assemblies, jamb-bracket sizes, fasteners, and other components vary according to the selected door height and single- or double-wide configuration.
Key Features
- Complete residential extension spring hardware package
- Designed for compatible sectional garage doors using extension springs
- Available for 7' and 8' door heights
- Single-wide and double-wide configurations available
- Combines commonly required installation hardware into one box
- Nylon rollers help support quieter and smoother door travel
- Pulley assemblies help guide extension spring and lifting cable movement
- Includes safety-containment components for compatible extension springs
- Suitable for new installations or complete hardware replacement
- Convenient for garage door professionals, builders, and experienced installers
- Helps reduce the need to source individual hardware components separately
Product Specifications
-
Product Type: Residential extension spring hardware kit
-
Spring System: Extension spring
-
Available Door Heights: 7' and 8'
-
Available Door Configurations: Single wide and double wide
-
Roller Type: 2" nylon rollers with 11-ball bearings
-
Pulley Size: 3"
-
Primary Application: Residential sectional garage doors
-
Track Application: Compatible standard residential track systems
-
Package Quantity: One hardware box based on selected configuration
Extension Spring Safety Cables
Safety-containment cables run through the center of compatible extension springs and help restrain the spring if it breaks. These cables are an essential safety component and must be properly installed according to the spring and door manufacturer’s instructions.
Selecting the Correct Hardware Box
Select the kit using the actual height and width of the garage door. First determine whether the door is 7 feet or 8 feet tall, then choose the appropriate single-wide or double-wide configuration.
Door width alone does not determine the correct extension springs. The springs must be selected separately according to the actual weight of the completed garage door.
Extension Springs Sold Separately: Unless specifically stated for the selected configuration, extension springs are not included. Springs must be matched to the actual weight and height of the garage door. Never select extension springs based only on door width.
Additional Components May Be Required: Vertical track, horizontal track, extension springs, angle supports, rear-track hangers, reinforcement struts, weather seal, garage door opener hardware, and door-specific components may be sold separately unless specifically stated.
Compatibility Notice
Verify the door height, door width, completed door weight, panel thickness, track size, track radius, extension spring length, spring weight rating, pulley arrangement, cable length, jamb construction, headroom, sideroom, and backroom before ordering. Hardware quantities and specifications vary by selected configuration.
Safety Warning: Garage doors are heavy, and extension springs, lifting cables, pulleys, and bottom brackets can be under extreme tension. Incorrect hardware selection or installation can cause uncontrolled door movement, property damage, serious injury, or death. Always install properly secured safety-containment cables through extension springs. Professional installation by a qualified garage door technician is strongly recommended.
